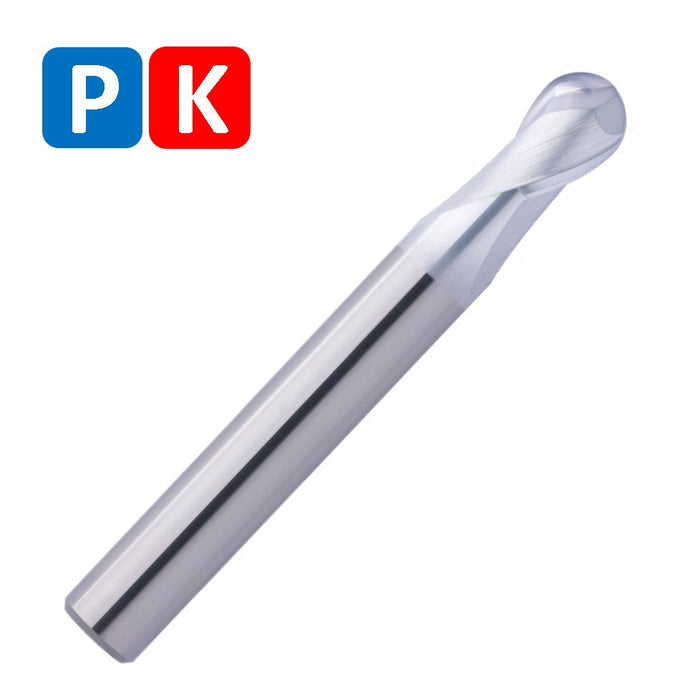

Solid Carbide End Mill 0.5mm 0.5R0.25x1.5x57xD6

Solid Carbide End Mill 0.5mm 0.5R0.25x1.5x57xD6

$42.43 - $42.43
$42.43
$42.43 - $42.43
$42.43


D1 (Cutting diameter): 0.5mm
L2 ( Length of cut): 1.5mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
R Corner radius: 0.5
Helical pitch: 30

  • Optimized cross cutting edge for minimal face wear
  • Innovative shape of the chip chamber for effective chip evacuation
  • Adapted wedge angle for homogeneous cutting force distribution
  • Designed for machining with air-cooling
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: f8

Coating: AlphaFerro Platin X

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 1XD, Corner Radius

item code:182001
