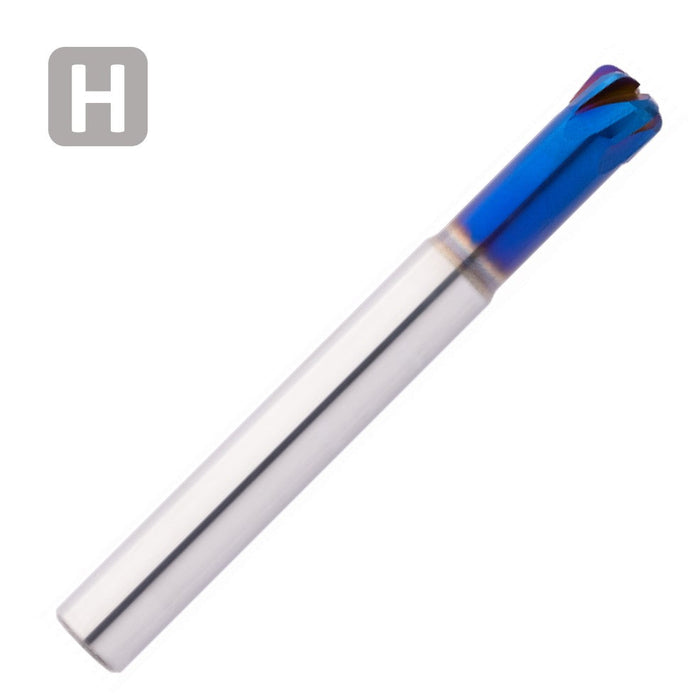

Solid Carbide End Mill 10mm 10x5.8-26x85xD10
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9mm
L2 ( Length of cut): 5.8mm
L3 (Length of undercut): 26mm
L1 (Total length): 85mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 5
Helical pitch: 12
- Ultrafine carbide grade specially developed for machining hardened steels
- Geometry with tangential transitions for HSC milling
- Defined cutting edge preparation for homogeneous wear
- Check programming radius and ap max. according to the variant table
- For roughing and finishing under HSC conditions
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: h9
Coating: AlphaDura Navy
Strategy: High Speed Cutting
Applications: Engraving, X, Y, Helical
Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius
item code: 225007
