Solid Carbide End Mill 6mm 6R3x16x100xD6

Solid Carbide End Mill 6mm 6R3x16x100xD6

$51.08 - $51.08
$51.08
$51.08 - $51.08
$51.08

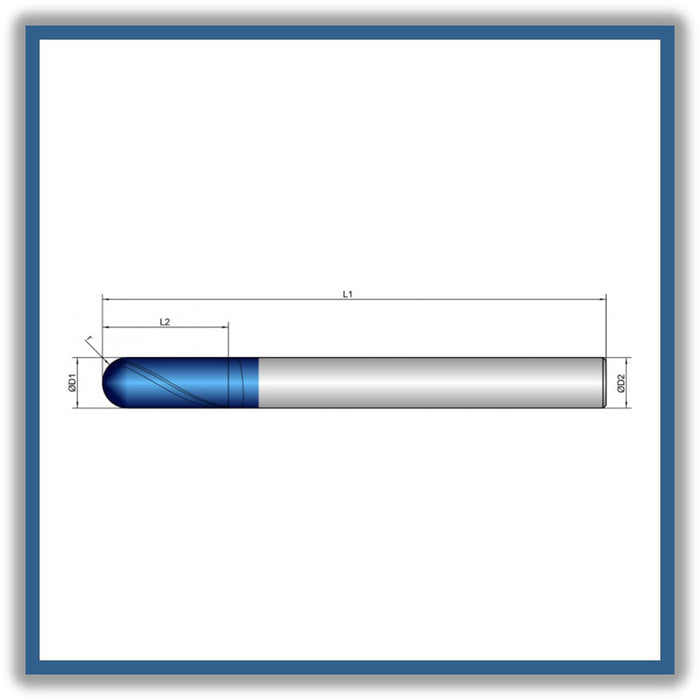

D1 (Cutting diameter): 6mm
L2 ( Length of cut): 16mm
L1 (Total length): 100mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
R Corner radius: 3
Helical pitch: 30

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Long version with extra long cutting length

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: f8

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 1,5XD, Corner Radius

item code: 218017
