Solid Carbide End Mill 4mm 4x2.5-24x83xD6

Solid Carbide End Mill 4mm 4x2.5-24x83xD6

$65.27 - $65.27
$65.27
$65.27 - $65.27
$65.27

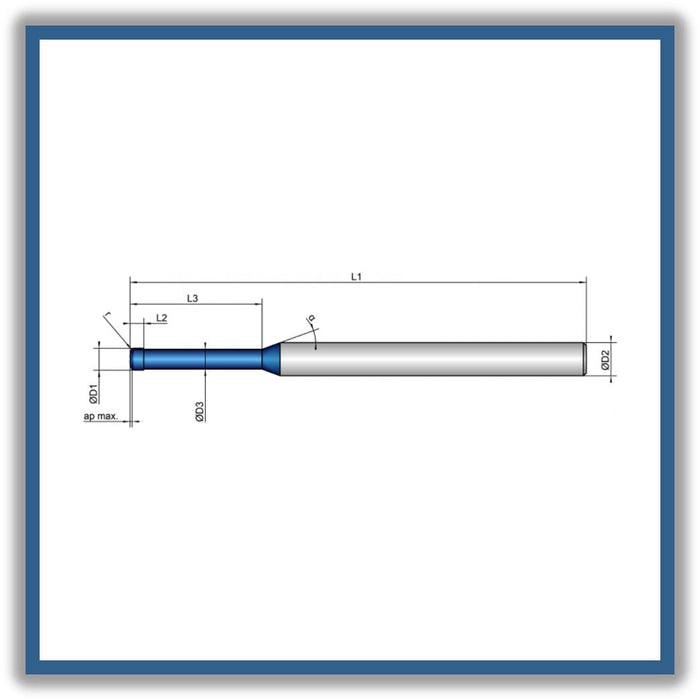

D1 (Cutting diameter): 4mm
D3 (Undercut diameter): 3.6mm
L2 ( Length of cut): 2.5mm
L3 (Length of undercut): 24mm
L1 (Total length): 83mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
Helical pitch: 12

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Geometry with tangential transitions for HSC milling
  • Defined cutting edge preparation for homogeneous wear

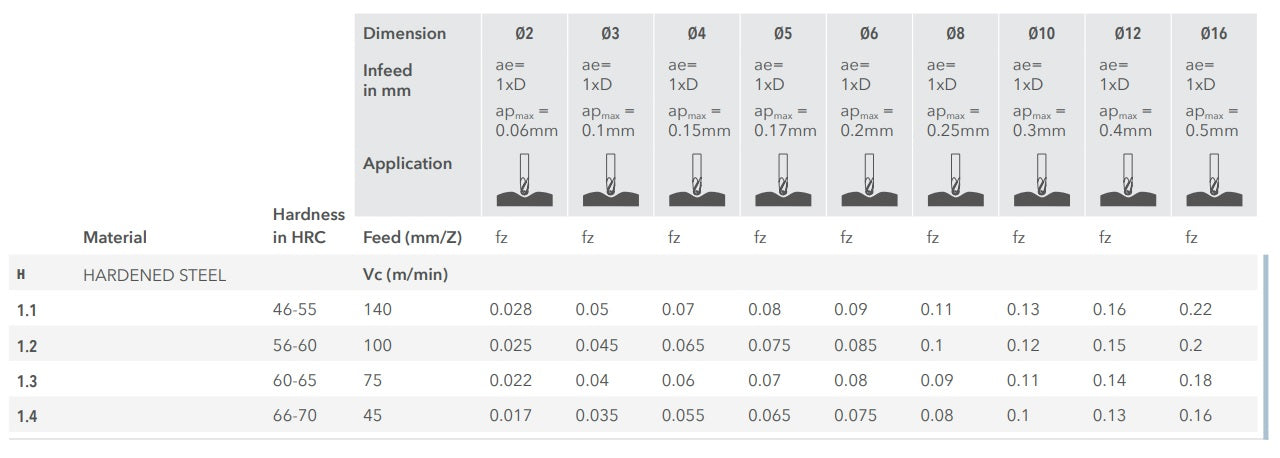

  • Check programming radius and ap max. according to the variant table
  • Long version for deeper cavities
  • For roughing and finishing under HSC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: h9

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, X, Y, Helical

Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius

item code: 226003
