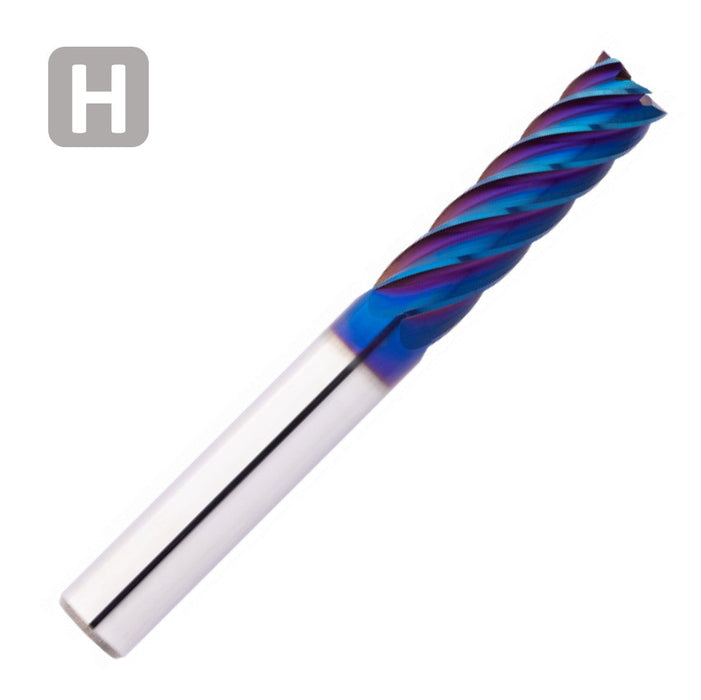

Solid Carbide End Mill 20mm 20x70x135xD20
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 20mm
L2 ( Length of cut): 70mm
L1 (Total length): 135mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 10
Helical pitch: 45
-
Ultrafine carbide grade specially developed for machining hardened steels
-
Adapted rake angle for safe milling up to 70 HRC
-
Defined cutting edge preparation for homogeneous wear
-
Reduce the axial depth of cutting with increasing hardness
-
For roughing and finishing
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: e8
Coating: AlphaDura Navy
Strategy: Extended Trochoidal Cutting, High Performance Cutting
Applications: Trimming, X, Helical
Features: Dynamic Helial Pitch, Center Cutting, Sharp-Edged
item code: 143012
