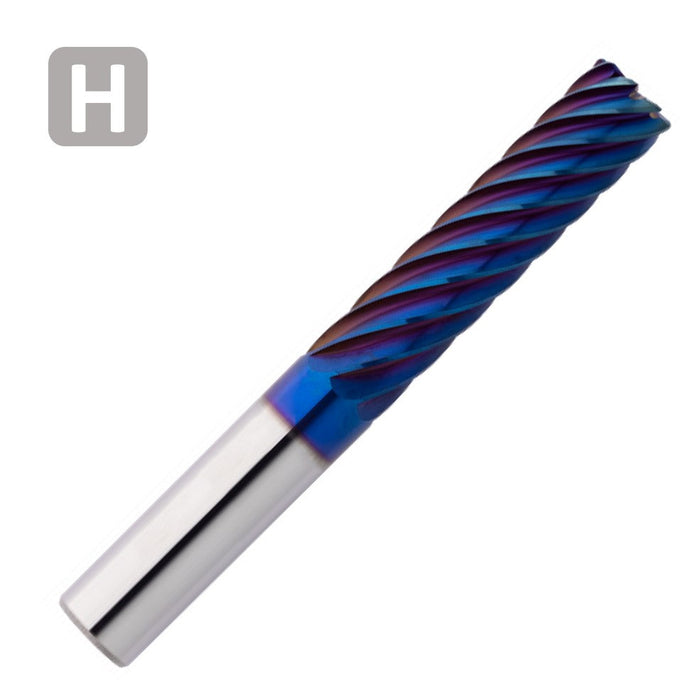

Solid Carbide End Mill 20mm 20R1x70x135xD20

Solid Carbide End Mill 20mm 20R1x70x135xD20

$407.30 - $407.30
$407.30
$407.30 - $407.30
$407.30


D1 (Cutting diameter): 20mm
L2 ( Length of cut): 70mm
L1 (Total length): 135mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 10
R Corner radius: 1
Helical pitch: 45

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Reduce the axial depth of cutting with increasing hardness
  • Multipass milling of 3D contours

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: e8

Coating: AlphaDura Navy

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Multipass Milling, Trimming, X, Helical

Features: Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 215003
