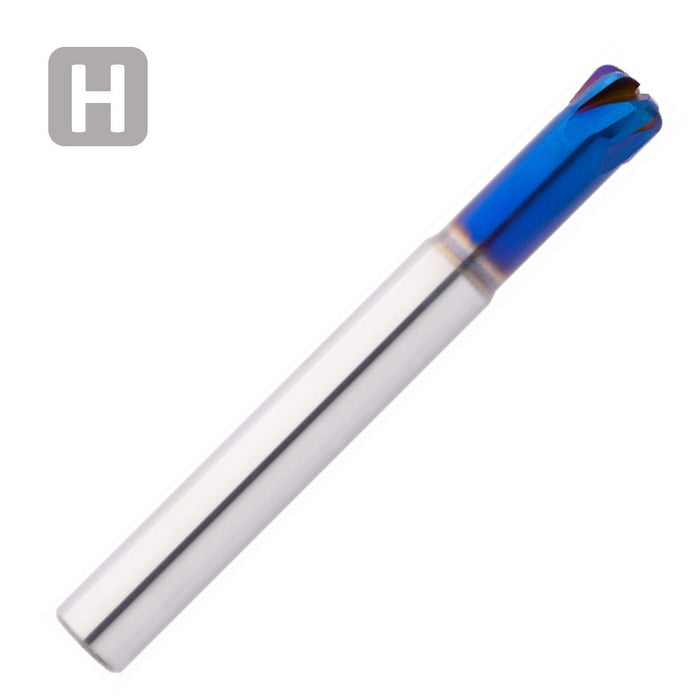

Solid Carbide End Mill 12mm 12x6.8-30x93xD12
Original price
-
Original price
Original price
-
Current price

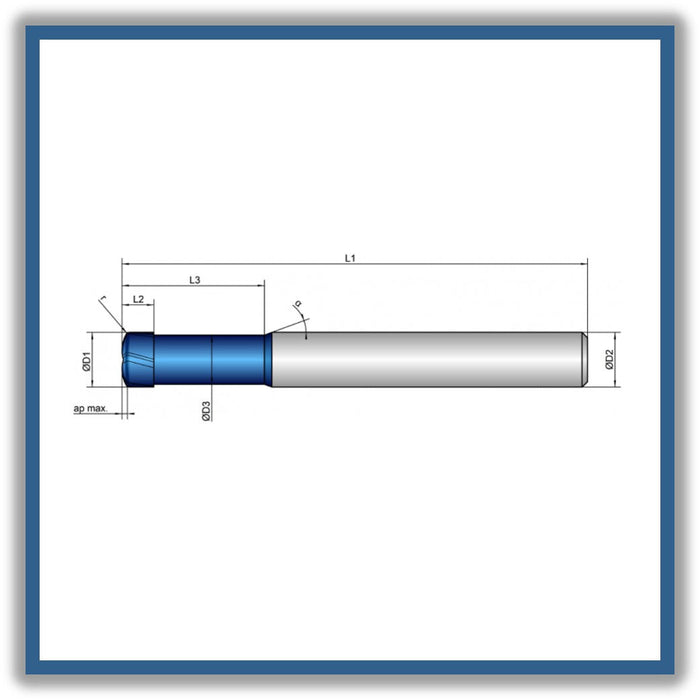

D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11mm
L2 ( Length of cut): 6.8mm
L3 (Length of undercut): 30mm
L1 (Total length): 93mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 5
Helical pitch: 12
- Ultrafine carbide grade specially developed for machining hardened steels
- Geometry with tangential transitions for HSC milling
- Defined cutting edge preparation for homogeneous wear

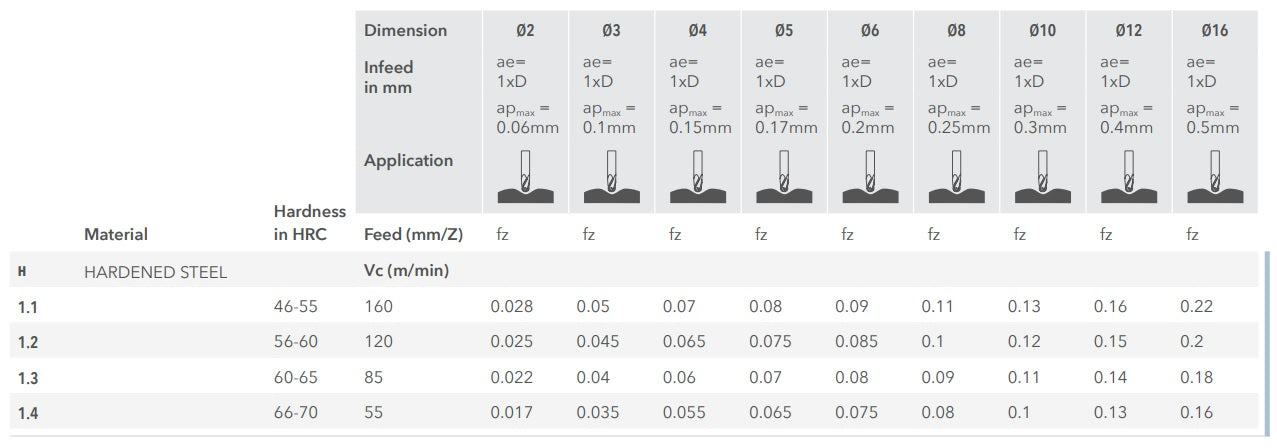

- Check programming radius and ap max. according to the variant table
- For roughing and finishing under HSC conditions
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: h9
Coating: AlphaDura Navy
Strategy: High Speed Cutting
Applications: Engraving, X, Y, Helical
Features: Unequal Tooth Pitch, Non-Center Cutting, 0,5XD, Corner Radius
item code: 225008
