Solid Carbide End Mill 0.5mm 0.5R0.25x0.4-10x50xD4

Solid Carbide End Mill 0.5mm 0.5R0.25x0.4-10x50xD4

$40.54 - $40.54
$40.54
$40.54 - $40.54
$40.54

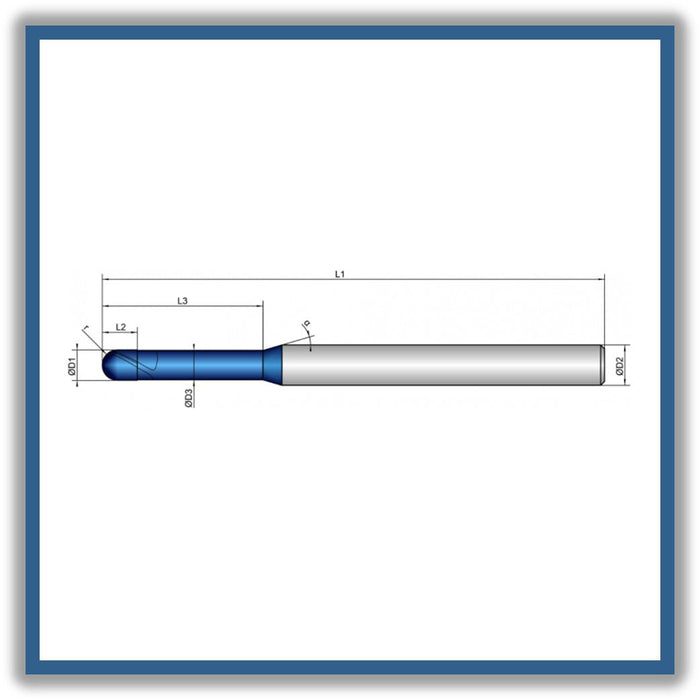

D1 (Cutting diameter): 0.5mm
D3 (Undercut diameter): 0.47mm
L2 ( Length of cut): 0.4mm
L3 (Length of undercut): 10mm
L1 (Total length): 50mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
R Corner radius: 0.25
Helical pitch: 30

  • Ultrafine carbide grade developed for machining hardened steels
  • Optimized face geometry for long tool life and highest dimensional accuracy
  • Reinforced core for milling up to 70 HRC
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
  • Radius tolerance r: 0/-0.003 mm (measured from 0-90°)
 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: d04

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, Corner Radius

item code: 220010
