Solid Carbide End Mill 0.1mm 0.1R0.05x0.2x38xD3

Solid Carbide End Mill 0.1mm 0.1R0.05x0.2x38xD3

$79.18 - $79.18
$79.18
$79.18 - $79.18
$79.18

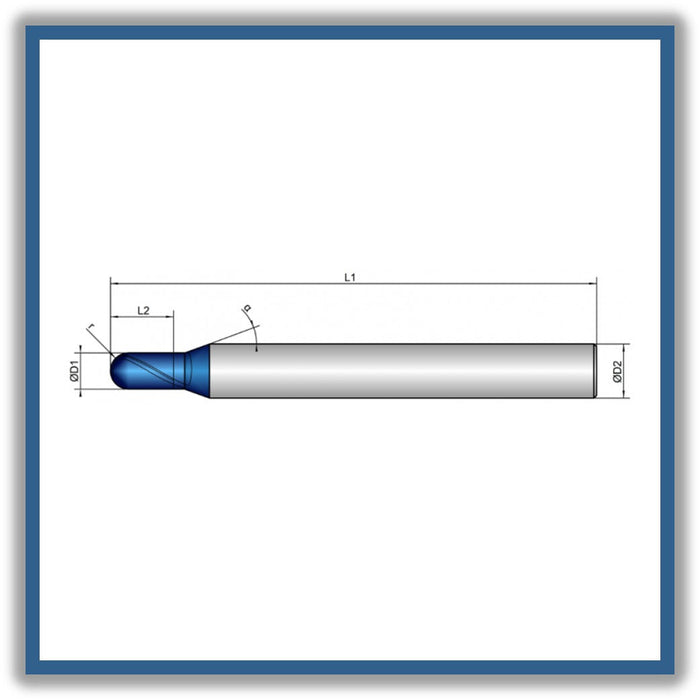

D1 (Cutting diameter): 0.1mm
L2 ( Length of cut): 0.2mm
L1 (Total length): 38mm
D2 (Shank diameter): 3mm
Z (Number of cutting edges): 2
R Corner radius: 0.05
Helical pitch: 30

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 2 mm: ± 0.003mm
  • Radius tolerance r > 2mm: ± 0.005mm

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: f8

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 1XD, Corner Radius

item code: 217001
