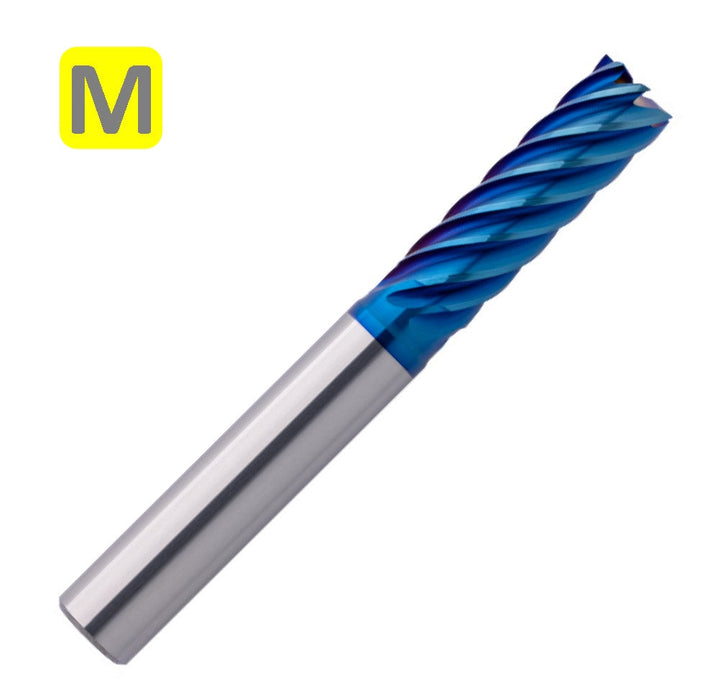

Solid Carbide End Mill 10mm 10x32-36x80xD10

Solid Carbide End Mill 10mm 10x32-36x80xD10

$109.82 - $109.82
$109.82
$109.82 - $109.82
$109.82


D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.5mm
L2 ( Length of cut): 32mm
L3 (Length of undercut): 36mm
L1 (Total length): 80mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 7
Helical pitch: 39

  • Slightly conical tool core and special helical pitch
  • 7 specially finished cutting edges with optimized geometry
  • Face-Finish-bevel for smooth workpiece surfaces
  • For excellent surfaces and maximum dimensional accuracy
  • 7 cutting edges for highest feed rates

 * MADE IN GERMANY *



Cooling: water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: High Performance Cutting

Applications: Trimming, X

Features: Unequal Tooth Pitch, 3XD, Dynamic Helical Pitch, Non-Center Cutting, Sharp-Edged

item code:191003
