Solid Carbide End Mill 8mm 8R0.5x9-27x63xD8

Solid Carbide End Mill 8mm 8R0.5x9-27x63xD8

$43.51 - $43.51
$43.51
$43.51 - $43.51
$43.51

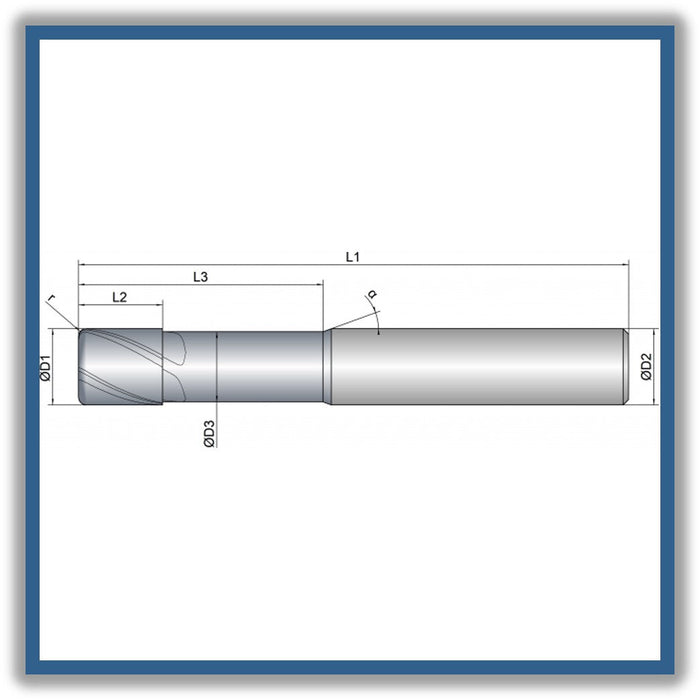

D1 (Cutting diameter): 8mm
D3 (Undercut diameter): 7.4mm
L2 ( Length of cut): 9mm
L3 (Length of undercut): 27mm
L1 (Total length): 63mm
D2 (Shank diameter): 8mm
Z (Number of cutting edges): 4
R Corner radius: 0.5
Helical pitch: 30

  • Unequal tooth pitch and variable helical pitch for smooth running
  • Specially designed cutting edge geometry for contour machining
  • Optimized chip chambers for safe evacuation of the chips
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Process reliable roughing and finishing even with full slot milling
  • Multipass milling of 3D contours

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Applications: X, Y, Helical

Features: Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting, Unequal Tooth Pitch, Multipass Milling, Trimming, Full Slot, Dynamic Helical Pitch, Center Cutting, 1XD, Corner Radius

item code: 175011
