Solid Carbide End Mill 6mm 6R0.15x24-0x68xD6

Solid Carbide End Mill 6mm 6R0.15x24-0x68xD6

$61.62 - $61.62
$61.62
$61.62 - $61.62
$61.62

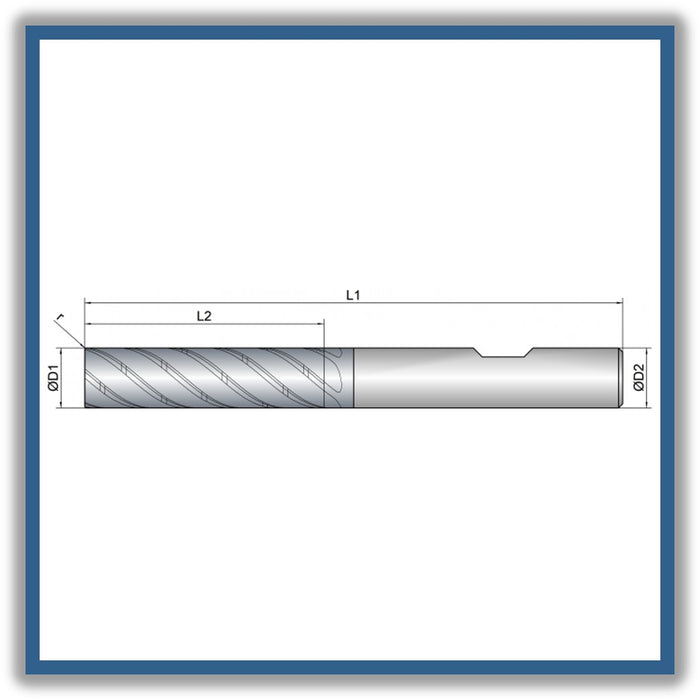

D1 (Cutting diameter): 6mm
L2 (Length of cut): 24mm
L1 (Total length): 68mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 5
R Corner radius: 0.15mm
Helical Pitch: 40

  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: Air cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 4XD, Dynamic helical pitch, Center cutting, Corner radius

item code: 326001
