Solid Carbide End Mill 5mm 5R2.5x8x75xD6

Solid Carbide End Mill 5mm 5R2.5x8x75xD6

$32.70 - $32.70
$32.70
$32.70 - $32.70
$32.70

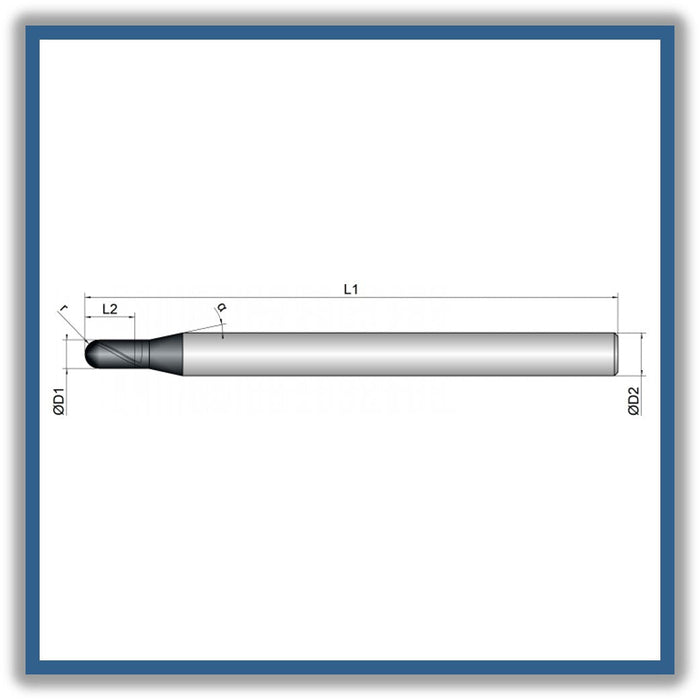

D1 (Cutting diameter): 5mm
L2 ( Length of cut): 8mm
L1 (Total length): 75mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 2
R Corner radius: 2.5mm
Helical pitch: 30


  • Geometry of the face cutting edge designed for a soft and even cut
  • Adapted chip chambers for roughing and finishing
  • Long version
  • Suitable for wet and dry machining



 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: f8

Coating: BetaUni Iron

Strategy: High Speed Cutting, Universal Machining

Applications: Engraving, Multipass Milling, X, Y, Z

Features: 1xD, Center Cutting, Corner Radius

item code: 160008
