Solid Carbide End Mill 4mm 4R2x8x83xD6

Solid Carbide End Mill 4mm 4R2x8x83xD6

$49.46 - $49.46
$49.46
$49.46 - $49.46
$49.46

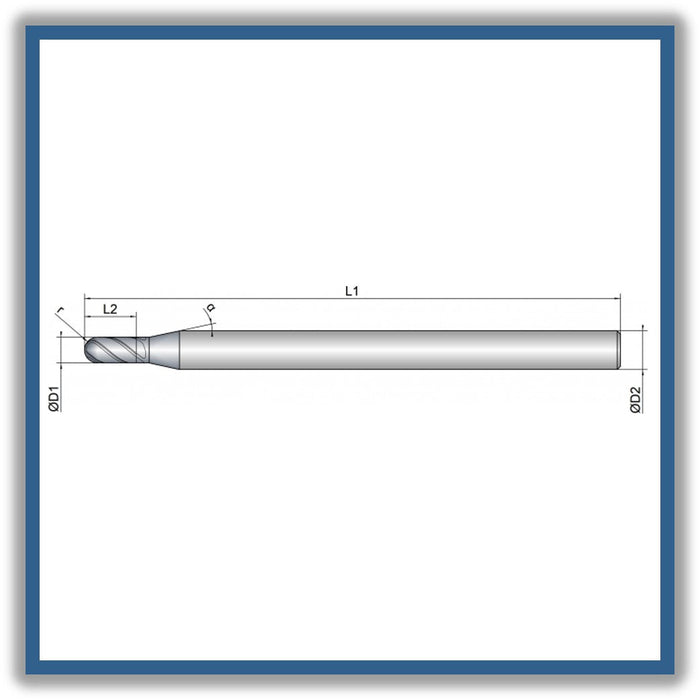

D1 (Cutting diameter): 4mm
L2 ( Length of cut): 8mm
L1 (Total length): 83mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R Corner radius: 2
Helical pitch: 40

  • Highest surface quality through 4 cutting edges to the center
  • Defined tool flank for support and vibration reduction
  • Special face geometry for optimal chip evacuation
  • 4 cutting edges for the highest feed speeds
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • For use in HSC milling
  • For roughing and finishing
  • Long version for deeper cavities

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: f8

Coating: AlphaFerro Platin X

Applications: X, Y, Z

Features: High Speed Cutting, Engraving, Multipass Milling, Center Cutting, 1XD, Corner Radius

item code:178002
