Solid Carbide End Mill 2mm 2R0.5x2.5-25x75xD3

Solid Carbide End Mill 2mm 2R0.5x2.5-25x75xD3

$44.59 - $44.59
$44.59
$44.59 - $44.59
$44.59

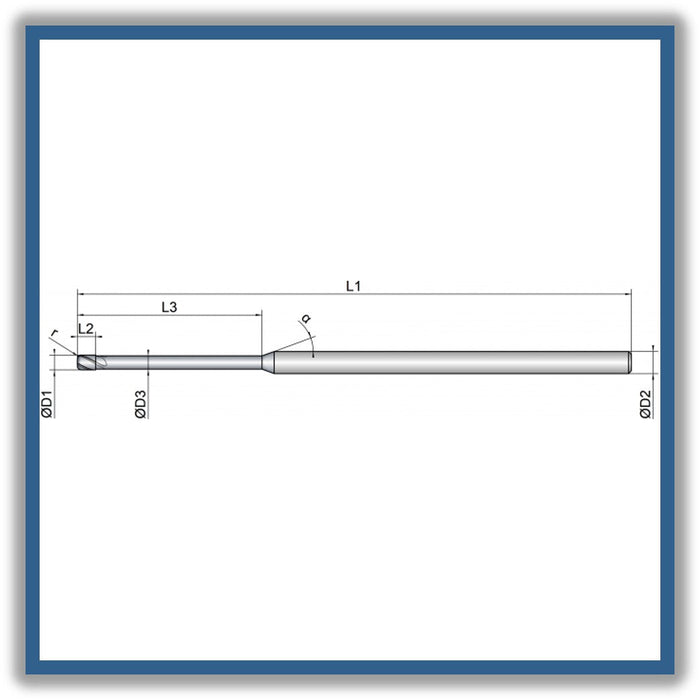

D1 (Cutting diameter): 2mm
D3 (Undercut diameter): 1.8 mm
L2 ( Length of cut): 2.5mm
L3 (Length of undercut): 25mm
L1 (Total length): 75mm
D2 (Shank diameter): 3mm
Z (Number of cutting edges): 4
R Corner radius: 0.5
Helical pitch: 30

  • Unequal tooth pitch and variable helical pitch for smooth running
  • Specially designed cutting edge geometry for contour machining
  • Optimized chip chambers for safe evacuation of the chips
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • For roughing and finishing
  • Long version for deeper cavities

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Applications: X, Y, Helical

Features: High Speed Cutting, High Performance Cutting, Unequal Tooth Pitch, Multipass Milling, Trimming, Dynamic Helical Pitch, Center Cutting, 1XD, Corner Radius

item code: 176003
