Solid Carbide End Mill 2mm 2R0.1x5-10x57xD6

Solid Carbide End Mill 2mm 2R0.1x5-10x57xD6

$35.95 - $35.95
$35.95
$35.95 - $35.95
$35.95

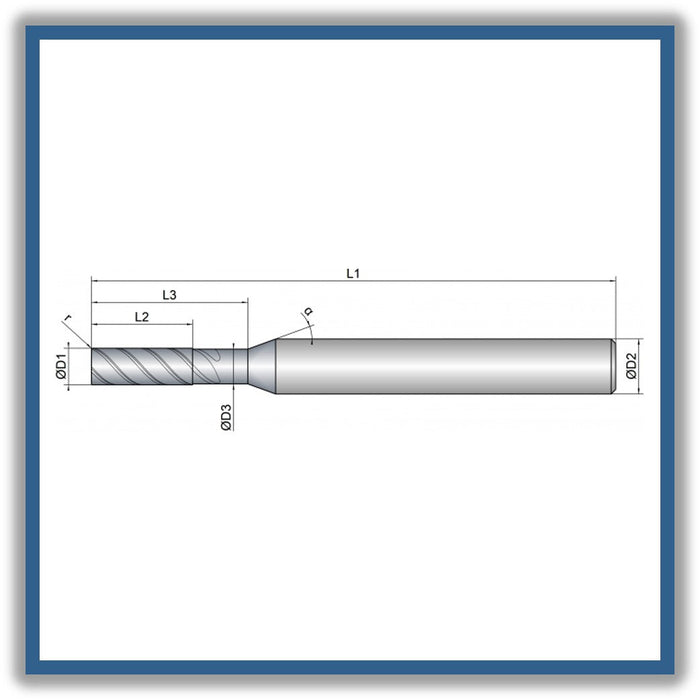

D1 (Cutting diameter): 2mm
D3 (Undercut diameter): 1.8mm
L2 ( Length of cut): 5mm
L3 (Length of undercut): 10mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R Corner radius: 0.1mm
Helical pitch: 40



  • Unequal tooth pitch combined with variable helix for smooth
    running
  • Optimized face for process reliable, helical diving and
    immersion
  • Reinforced cutting edge with corner protection radius
  • For roughing and finishing, up to 1xD full slot
  • Designed for maximum tool life when trimming and trochoidal
    milling
  • Unleashes its full performance potential when milling with air
    cooling
 * MADE IN GERMANY *


Cooling: air-cooled, dry

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy:  Extended Trochoidal Cutting, High Performance Cutting

Applications:  Trimming, Full Slot, X, Y, Helical

Features: Unequal Tooth Pitch, 2xD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 115001
