Solid Carbide End Mill 10mm 10C0.2x30-38x80xD10

Solid Carbide End Mill 10mm 10C0.2x30-38x80xD10

$66.22 - $66.22
$66.22
$66.22 - $66.22
$66.22

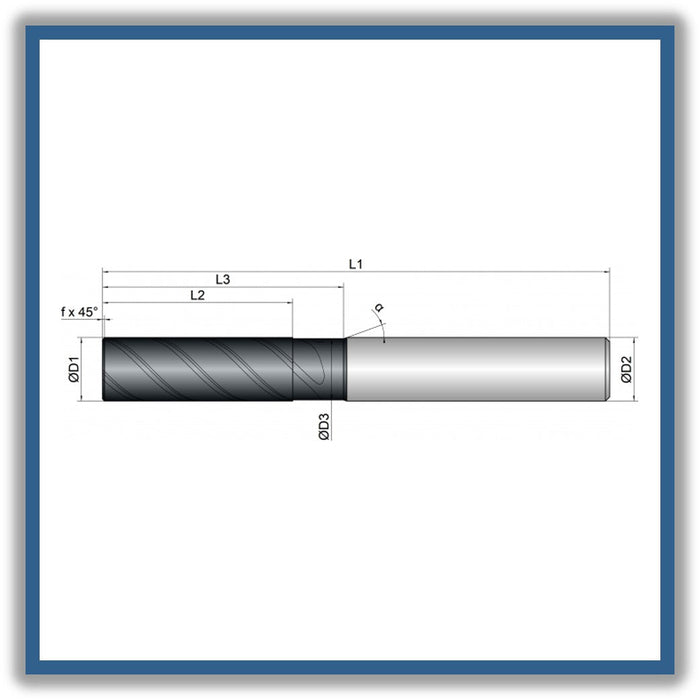

D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.6mm
L2 ( Length of cut): 30mm
L3 (Length of undercut): 38mm
L1 (Total length): 80mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 4
45DEG Corner chamfer: 0.2mm
Helical pitch: 40


  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Strategy: Extended Trochoidal Cutting, High Performance Cutting, Universal Machining

Applications: Trimming, Full Slot, X, Y, Helical

Features: Unequal tooth pitch, 3xD, Center Cutting, Corner Bevel

item code: 156005
