4xD Solid Carbide Drill Tip of 118º Helix at 30º DIN338N 10x87x113xD10

4xD Solid Carbide Drill Tip of 118º Helix at 30º DIN338N 10x87x113xD10

$128.11 - $128.11
$128.11
$128.11 - $128.11
$128.11

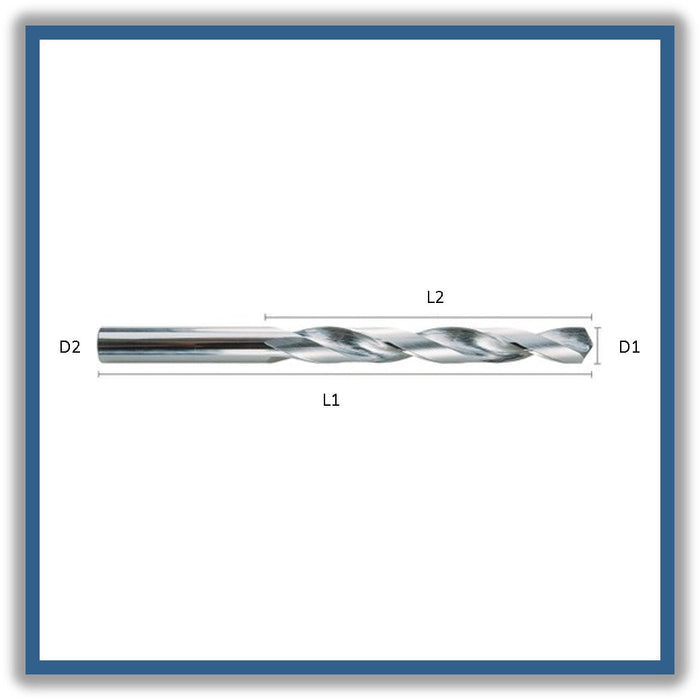

D1 (Cutting diameter): 10mm
L2 (Length of cut): 87mm
L1 (Total length): 113mm
D2 (Shank diameter): 10mm
Helical pitch: 30
  • Solid carbide HM
  • Drilling depth 4xd
  • 118º tip
  • 30º propeller

Applications:

Soft magnetic steels, construction and carburizing steels, and non-alloyed and alloyed carbon steels up to a strength of 1,400 N/mm2

 * MADE IN SPAIN *



item code: 244051
