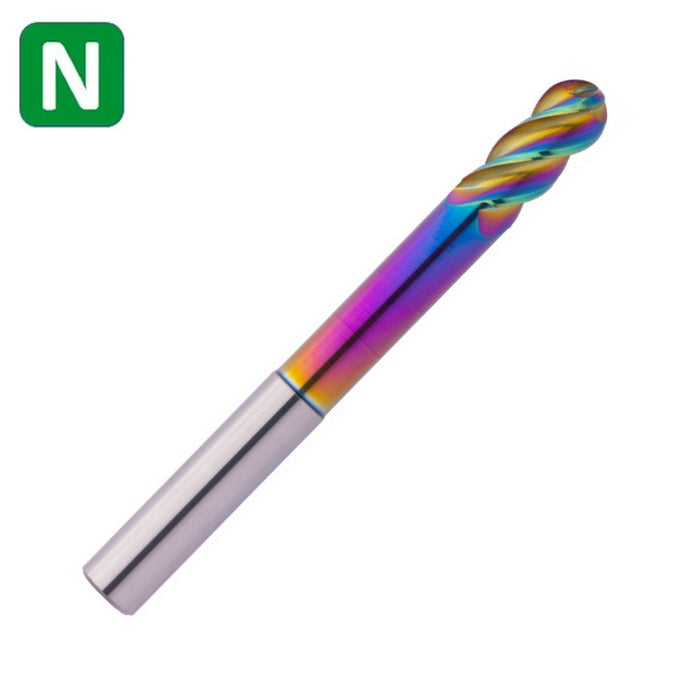

Solid Carbide End Mill 6mm 6R3x13-44x83xD6

Solid Carbide End Mill 6mm 6R3x13-44x83xD6

$56.49 - $56.49
$56.49
$56.49 - $56.49
$56.49
D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.5mm
L2 ( Length of cut): 13mm
L3 (Length of undercut): 43mm
L1 (Total length): 83mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R Corner radius: 3mm
Helical pitch: 45



  • Four cutting edges to the center for the best dimensional accuracy at high material removal rates
  • Defined microbevel and optimized face geometry for excellent surface quality
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Long version for deeper cavities
  • For use in HSC milling
  • For roughing and finishing
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy:  High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 2xD, Corner Radius

item code: 111004
