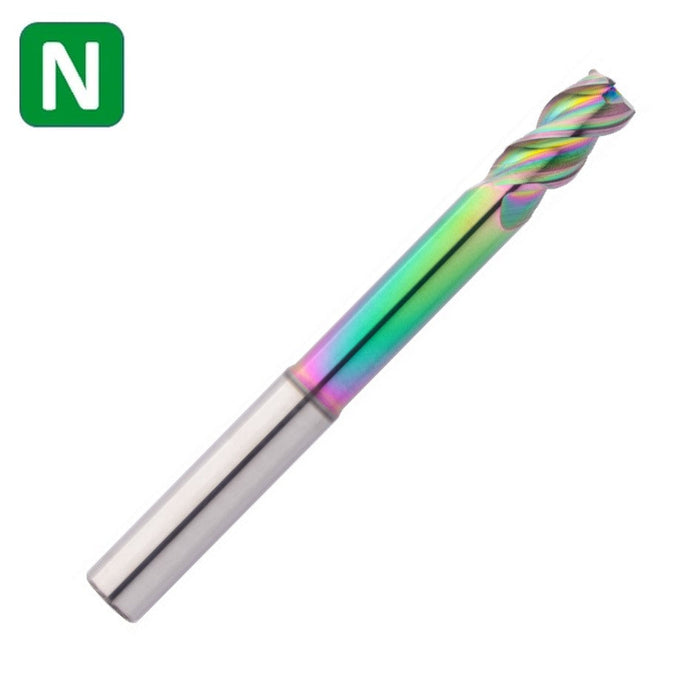

Solid Carbide End Mill 6mm 6R1x10-42x83xD6

Solid Carbide End Mill 6mm 6R1x10-42x83xD6

$46.76 - $46.76
$46.76
$46.76 - $46.76
$46.76
D1 (Cutting diameter): 6mm
D3 (Undercut diameter):5.7mm
L2 ( Length of cut): 10mm
L3 (Length of undercut):42mm
L1 (Total length): 83mm
D2 (Shank diameter):6mm
Z (Number of cutting edges): 3
R Corner radius: 1mm
Helical pitch: 45





  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Long version for deeper cavities
  • For roughing and finishing
  • Multipass milling of 3D contours
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy:  High Speed Cutting, High Performance cutting

Applications: Multipass Milling, Trimming, X,Y, Helical

Features: Unequal tooth pitch, Center Cutting, 1.5xD, Corner Radius

item code: 109004
