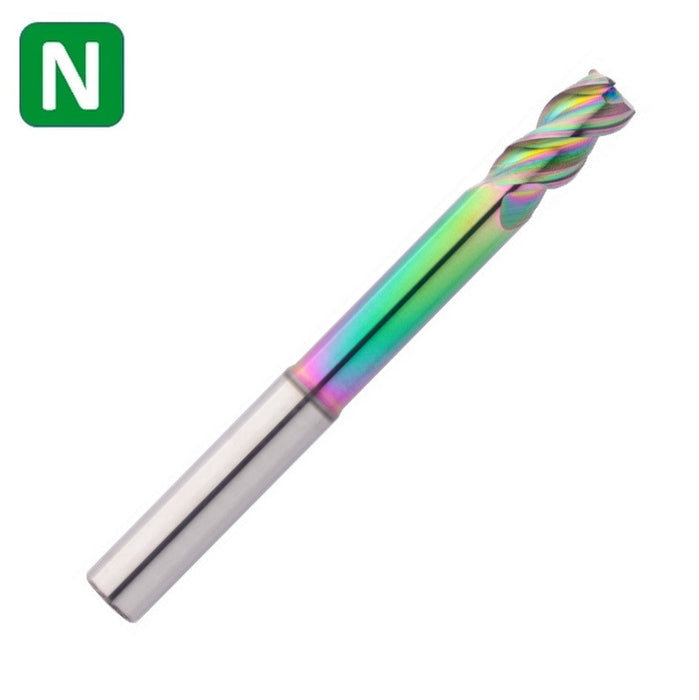

Solid Carbide End Mill 6mm 6R0.5x10-42x83xD6
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 6mm
D3 (Undercut diameter):5.7mm
L2 ( Length of cut):10mm
L3 (Length of undercut):42mm
L1 (Total length): 83mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 3
R Corner radius: 0.5mm
Helical pitch: 45
- Defined clearance angle for ideal stabilization with high cutting depths
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
- Radius tolerance r > 1.5 mm: ± 0.005 mm
- Long version for deeper cavities
- For roughing and finishing
- Multipass milling of 3D contours
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: High Speed Cutting, High Performance cutting
Applications: Multipass Milling, Trimming, X,Y, Helical
Features: Unequal tooth pitch, Center Cutting, 1.5xD, Corner Radius
item code: 109003
