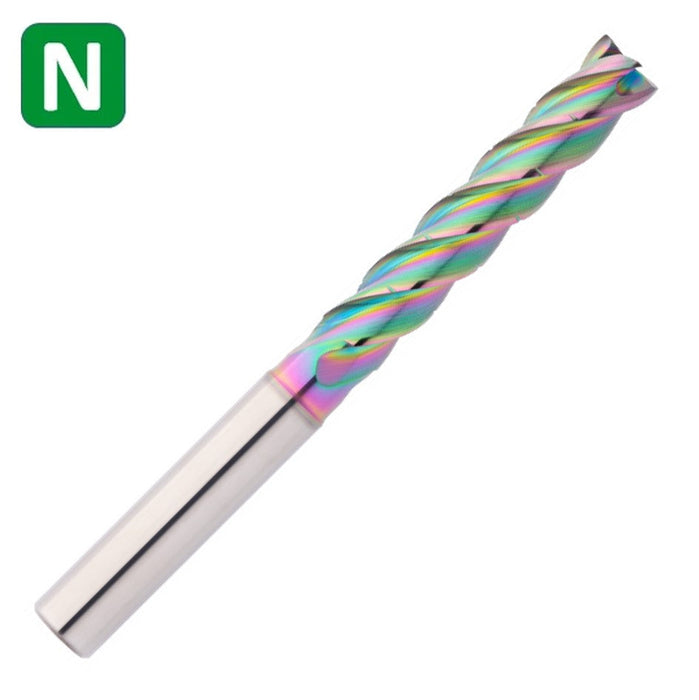

Solid Carbide End Mill 6mm 6R0.15x31-36x75xD6

Solid Carbide End Mill 6mm 6R0.15x31-36x75xD6

$68.38 - $68.38
$68.38
$68.38 - $68.38
$68.38

D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.5mm
L2 ( Length of cut): 31mm
L3 (Length of undercut): 36mm
L1 (Total length): 75mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R (Corner Radius): 0.15mm
Helical pitch: 38



  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y , Helical

Features:  Unequal Tooth Pitch, Chip Breaking, 5XD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 125002
