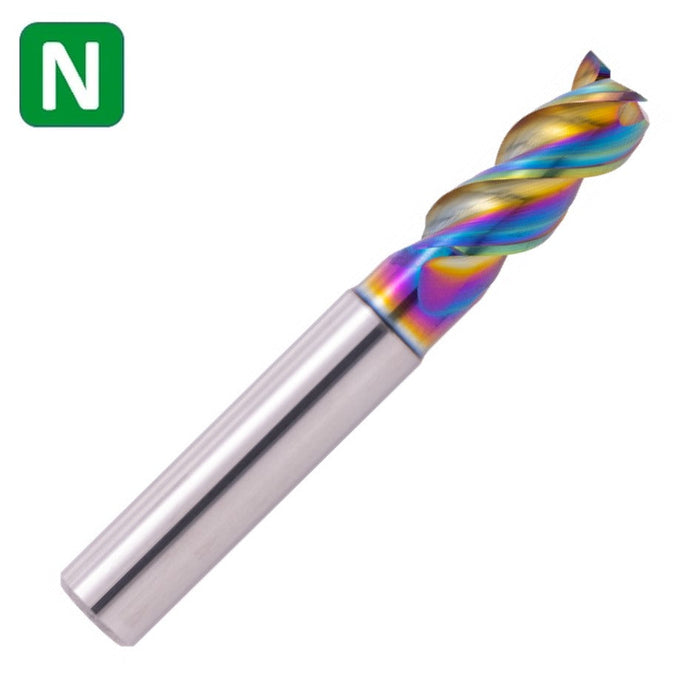

Solid Carbide End Mill 4mm 4x11-16x57xD6
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 4mm
D3 (Undercut diameter):3.70mm
L2 ( Length of cut): 11mm
L3 (Length of undercut):16 mm
L1 (Total length): 57mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 3
Helical pitch: 45
- Defined clearance angle for ideal stabilization with high cutting depths
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- For process reliable, helical diving and immersion
- For roughing and finishing, up to 2xD full slot
- Sharp-edged version without edge protection
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting, High Performance cutting
Applications: Trimming, Full slot, X,Y,helical
Features: Unequal tooth pitch, 2xD, Center Cutting, Sharp edged
item code: 103003
