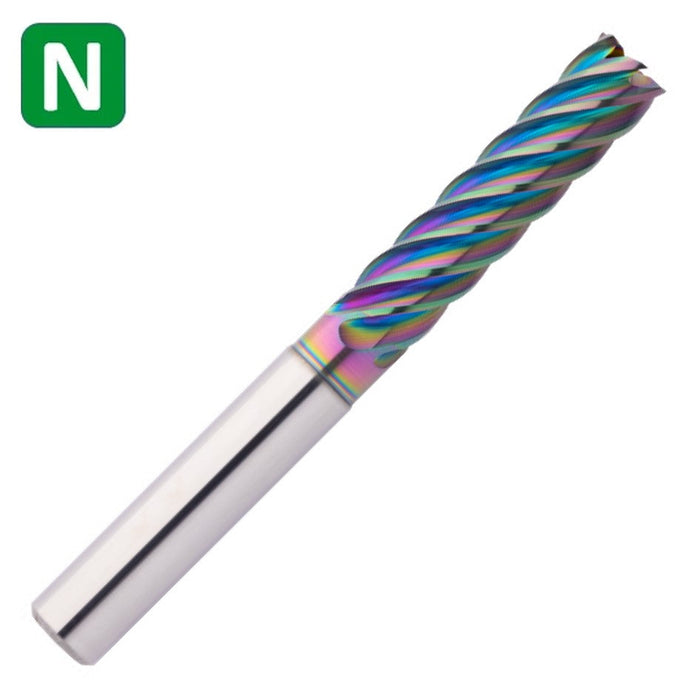

Solid Carbide End Mill 20mm 20x80-88x150xD20

Solid Carbide End Mill 20mm 20x80-88x150xD20

$344.59 - $344.59
$344.59
$344.59 - $344.59
$344.59

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.5mm
L2 ( Length of cut): 80mm
L3 (Length of undercut): 88mm
L1 (Total length): 150mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 6
Helical pitch: 39
  • Ultra-sharp and lapped cutting edges
  • Special chip chambers designed for the evacuation of extra long and fine chips
  • Face-Finish-bevel for smooth workpiece surfaces
  • 6 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: High Performance Cutting

Applications: Trimming,  X

Features:  Unequal Tooth Pitch, 4XD, Dynamic Helical Pitch, Non-Center Cutting, Sharp-Edged

item code: 128006
