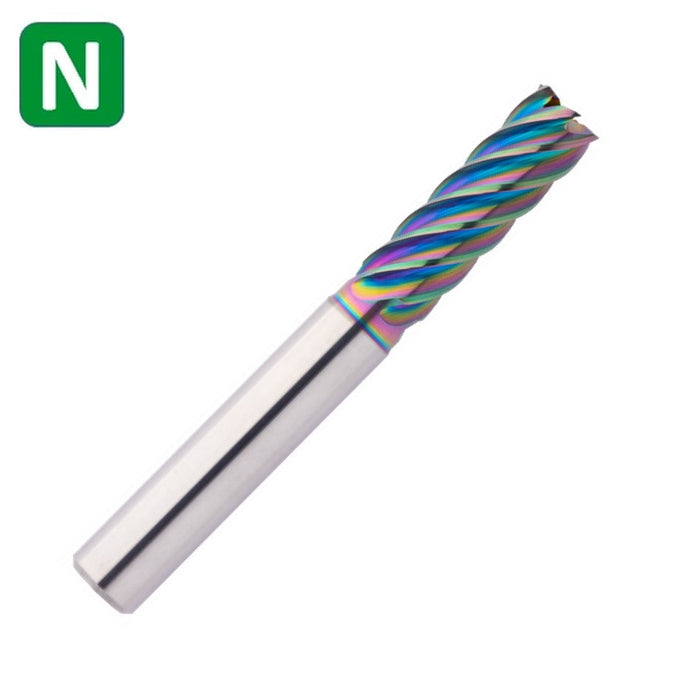

Solid Carbide End Mill 12mm 12x36-45x93xD12
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 12mm
D3 (Undercut diameter):11.5mm
L2 ( Length of cut): 36mm
L3 (Length of undercut): 45mm
L1 (Total length): 93mm
D2 (Shank diameter):12mm
Z (Number of cutting edges): 6
Helical pitch: 39
- Ultra-sharp and lapped cutting edges
- Special chip chambers designed for the evacuation of extra long and fine chips
- Face-Finish-bevel for smooth workpiece surfaces
- 6 cutting edges for highest feed rates
- For excellent surfaces and maximum dimensional accuracy
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: High Performance cutting
Applications: Trimming, X
Features: Unequal tooth pitch, Dynamic helical pitch, 3xD, Non-Center Cutting, Sharp-edged
item code: 108004
