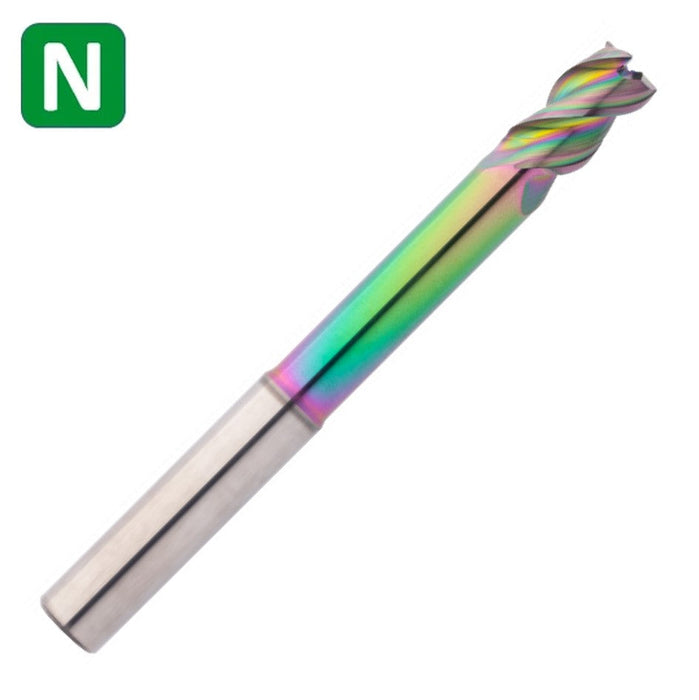

Solid Carbide End Mill 12mm 12x19-73x119xD12
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11mm
L2 ( Length of cut): 19mm
L3 (Length of undercut): 73mm
L1 (Total length): 119mm
D2 (Shank diameter): 112mm
Z (Number of cutting edges): 3
Helical pitch: 45
-
Defined clearance angle for ideal stabilization with high cutting depths
-
Special helical pitch for smooth running and soft cut
-
Extra large chip chambers for an extreme chip volume
-
With central inner cooling
-
Long version for deeper cavities
-
For process reliable, helical diving and immersion
-
For roughing and finishing
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: High Performance Cutting
Applications: Trimming, Full Slot, X, Y, Helical
Features: Unequal Tooth Pitch, Coolant Duct System, 1.5XD, Non-Center Cutting, Corner Bevel
item code:127005
