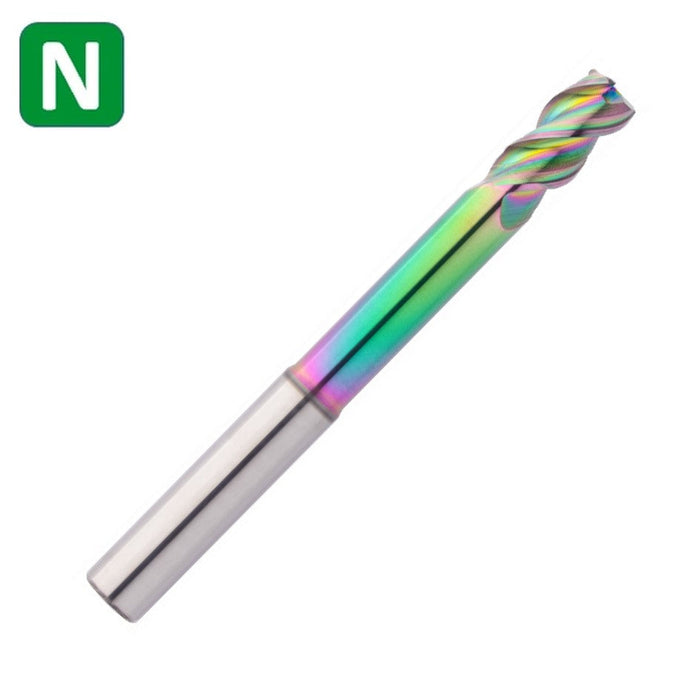

Solid Carbide End Mill 12mm 12R0.5x19-73x119xD12

Solid Carbide End Mill 12mm 12R0.5x19-73x119xD12

$101.08 - $101.08
$101.08
$101.08 - $101.08
$101.08
D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11mm
L2 ( Length of cut): 19mm
L3 (Length of undercut): 73mm
L1 (Total length): 119mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 3
R Corner radius: 0.5mm
Helical pitch: 45

  • Defined clearance angle for ideal stabilization with high cutting depths
  • Special helical pitch for smooth running and soft cut
  • Extra large chip chambers for an extreme chip volume
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • Long version for deeper cavities
  • For roughing and finishing
  • Multipass milling of 3D contours
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy:  High Speed Cutting, High Performance cutting

Applications: Multipass Milling, Trimming, X,Y, Helical

Features: Unequal tooth pitch, Center Cutting, 1.5xD, Corner Radius

item code: 109013
