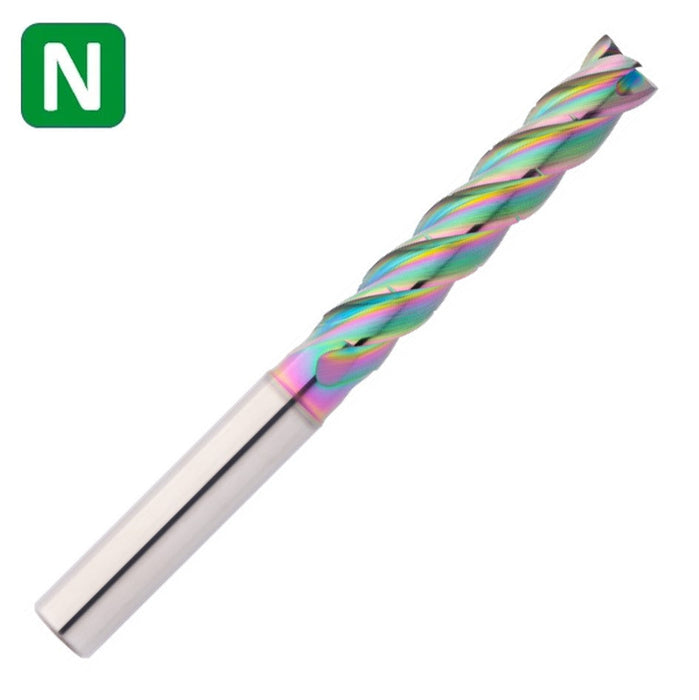

Solid Carbide End Mill 12mm 12R0.2x61-72x120xD12
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.5mm
L2 ( Length of cut): 61mm
L3 (Length of undercut): 72mm
L1 (Total length): 120mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 4
R (Corner Radius): 0.2mm
Helical pitch: 38
-
Chip breaker for short, defined chip length
-
Unequal tooth pitch combined with variable helical pitch for smooth running
-
Reinforced face with 2 cutting edges to the center
-
Ideal chip evacuation, even with high radial depth of cutting
-
For roughing and finishing under ETC conditions
-
For process reliable, helical immersion
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting
Applications: Trimming, X, Y , Helical
Features: Unequal Tooth Pitch, Chip Breaking, 5XD, Dynamic Helical Pitch, Center Cutting, Corner Radius
item code: 125005
