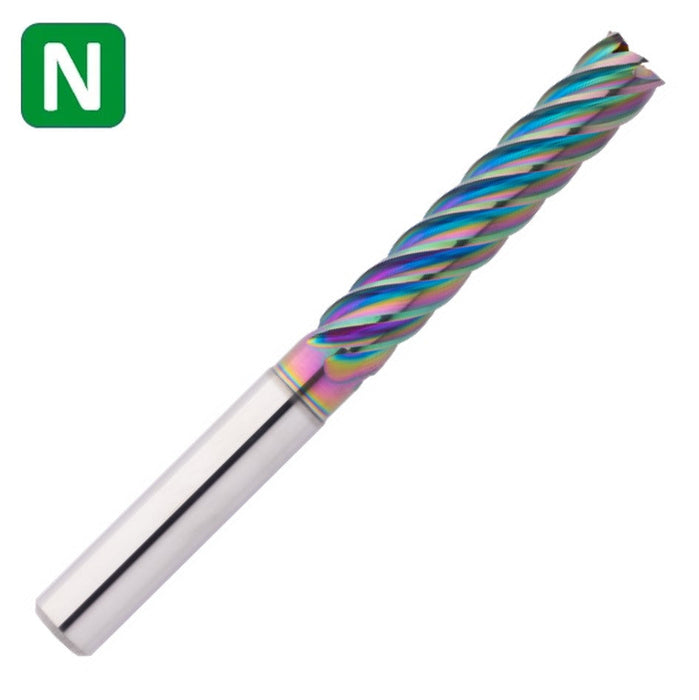

Solid Carbide End Mill 10mm 10x50-58x100xD10

Original price $100.81 - Original price $100.81
Original price
$100.81
$100.81 - $100.81
Current price $100.81

D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.5mm
L2 ( Length of cut): 50mm
L3 (Length of undercut): 58mm
L1 (Total length): 100mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 6
Helical pitch: 39



  • Ultra-sharp and lapped cutting edges
  • Special chip chambers designed for the evacuation of extra long and fine chips
  • Face-Finish-bevel for smooth workpiece surfaces
  • 6 cutting edges for highest feed rates
  • For excellent surfaces and maximum dimensional accuracy
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: High Performance Cutting

Applications: Trimming, X,

Features:  Unequal Tooth Pitch, Dynamic Helical Pitch, 5XD, Non-Center Cutting, Sharp-Edged

item code: 129003
