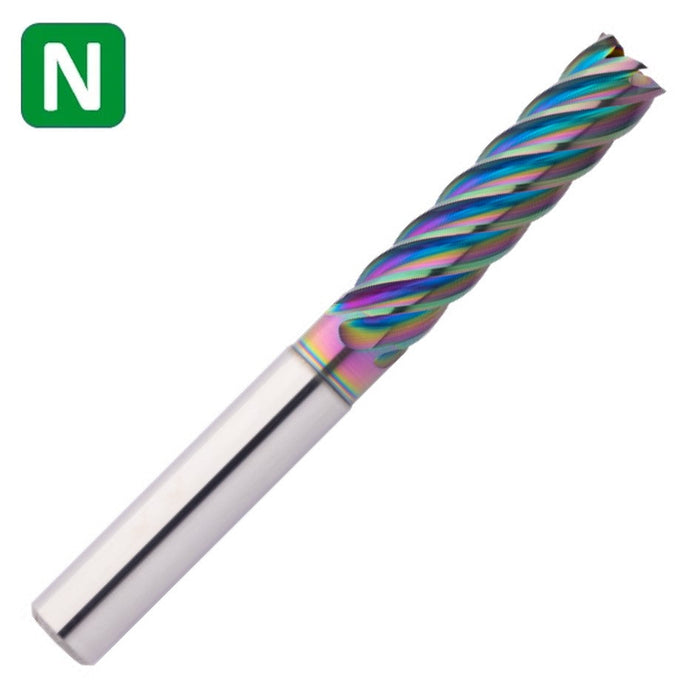

Solid Carbide End Mill 10mm 10x40-48x90xD10
Original price
-
Original price
Original price
-
Current price

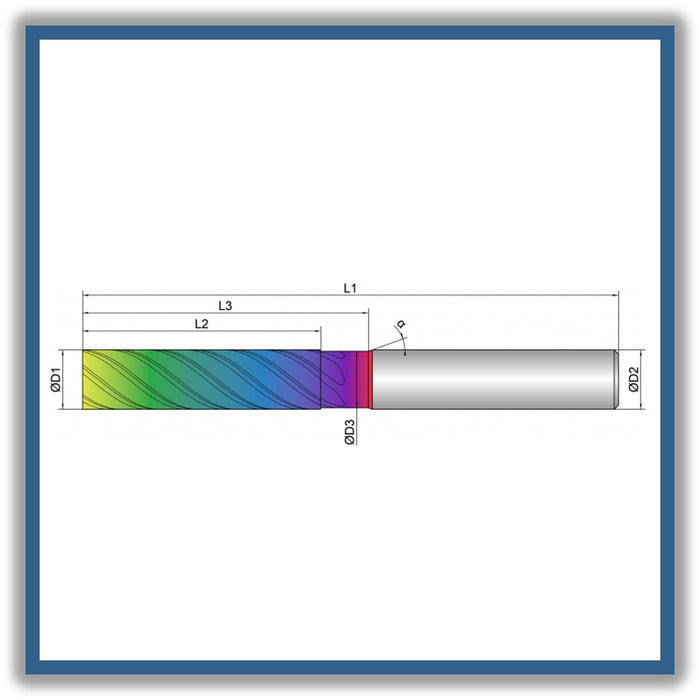

D1 (Cutting diameter): 10mm
D3 (Undercut diameter): 9.5mm
L2 ( Length of cut): 40mm
L3 (Length of undercut): 48mm
L1 (Total length): 90mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 6
Helical pitch: 39
- Ultra-sharp and lapped cutting edges
- Special chip chambers designed for the evacuation of extra long and fine chips
- Face-Finish-bevel for smooth workpiece surfaces
- 6 cutting edges for highest feed rates
- For excellent surfaces and maximum dimensional accuracy
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: h6
Coating: AlphaSlide Rainbow
Strategy: High Performance Cutting
Applications: Trimming, X
Features: Unequal Tooth Pitch, 4XD, Dynamic Helical Pitch, Non-Center Cutting, Sharp-Edged
item code: 128003
