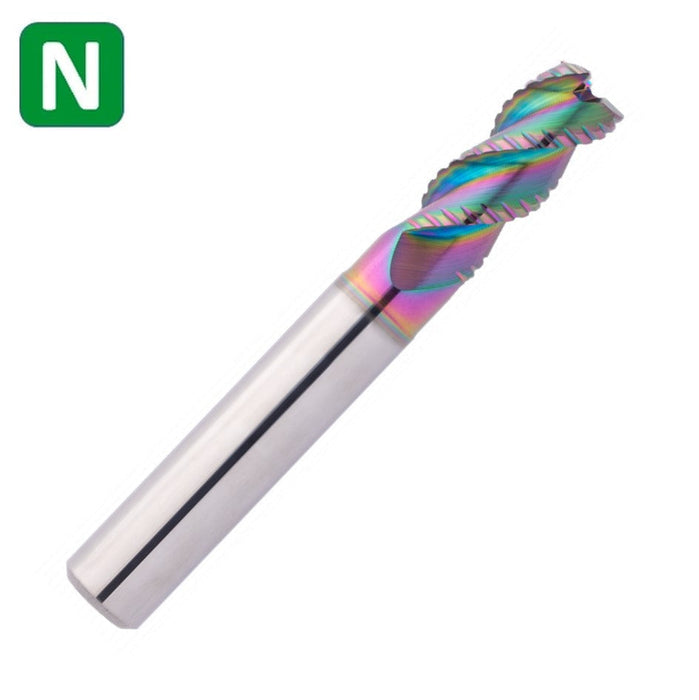

Solid Carbide End Mill 10mm 10R0.32x22-30x72xD10
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 10mm
D3 (Undercut diameter):9.6mm
L2 ( Length of cut): 22mm
L3 (Length of undercut): 30mm
L1 (Total length): 72mm
D2 (Shank diameter):10mm
Z (Number of cutting edges): 3
R Corner radius: 0.32mm
Helical pitch: 45
- Roughing teeth for the smallest chips in volume machining
- Special helical pitch for smooth running and soft cut
- Extra large chip chambers for an extreme chip volume
- Also ideally designed for trochoidal milling
- For roughing, up to 2xD full slot
- For process reliable, helical diving and immersion
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: e8
Coating: AlphaSlide Rainbow
Strategy: Extended Trochoidal Cutting, High Performance cutting
Applications: Trimming, Full slot, X,Y,helical
Features: Unequal tooth pitch, Serrated edge, 2xD, Center Cutting, Corner Radius
item code: 106005
