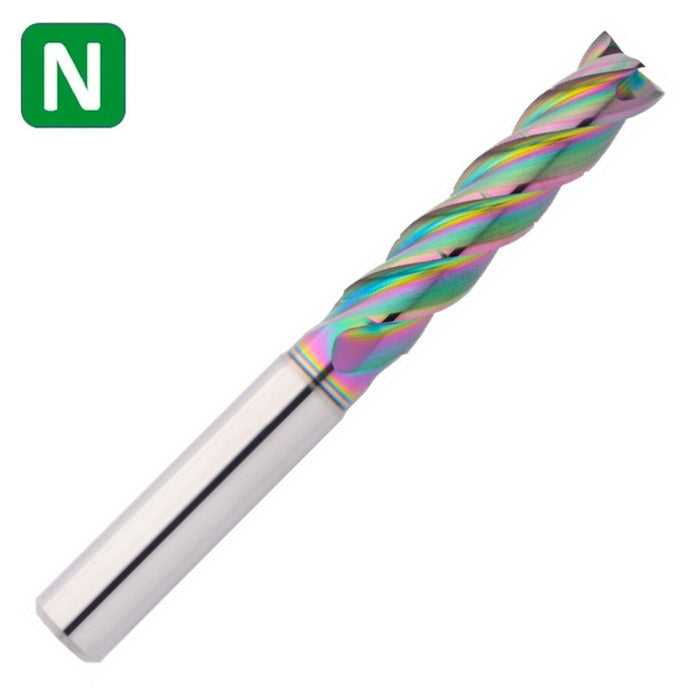

Solid Carbide End Mill 6mm 6R0.15x25-30x70xD6

Solid Carbide End Mill 6mm 6R0.15x25-30x70xD6

$64.13 - $64.13
$64.13
$64.13 - $64.13
$64.13

D1 (Cutting diameter): 6mm
D3 (Undercut diameter): 5.5mm
L2 ( Length of cut): 25mm
L3 (Length of undercut): 30mm
L1 (Total length): 70mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R (Corner Radius): 0.15mm
Helical pitch: 38



  • Chip breaker for short, defined chip length
  • Unequal tooth pitch combined with variable helical pitch for smooth running
  • Reinforced face with 2 cutting edges to the center
  • Ideal chip evacuation, even with high radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion
 * MADE IN GERMANY *

Cooling: air-cooled, dry, water min, water max

Tolerance: h6

Coating: AlphaSlide Rainbow

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y , Helical

Features:  Unequal Tooth Pitch, Chip Breaking, 4XD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 124002
