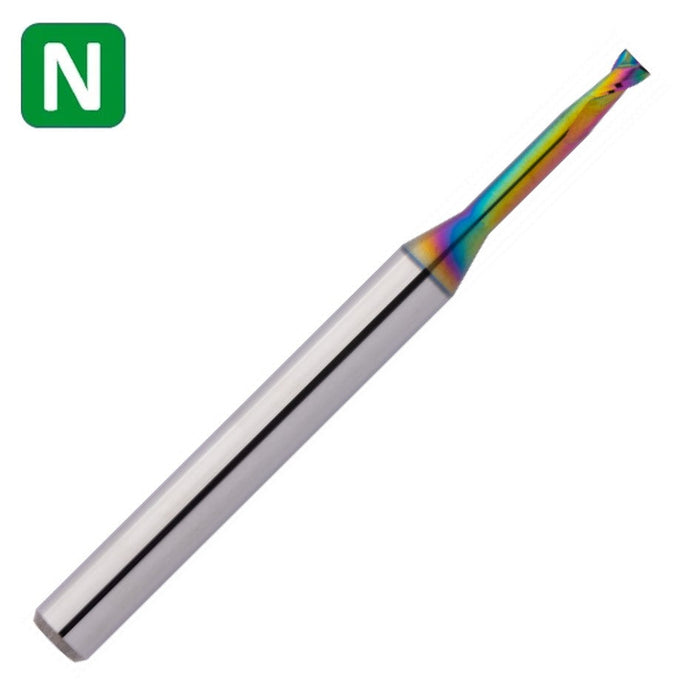

Solid Carbide End Mill 1.5mm 1.5x2.3-12x45xD4

Solid Carbide End Mill 1.5mm 1.5x2.3-12x45xD4

$40.00 - $40.00
$40.00
$40.00 - $40.00
$40.00

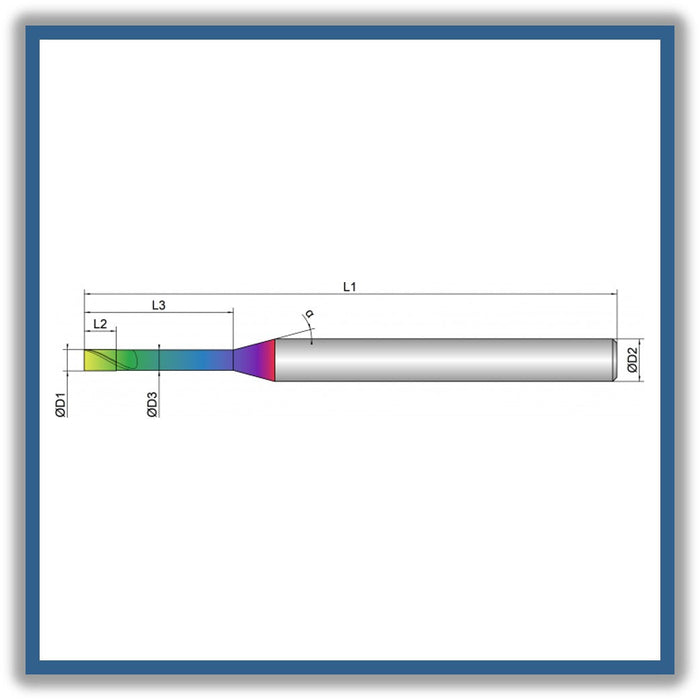

D1 (Cutting diameter): 1.5mm
D3 (Undercut diameter): 1.44mm
L2 ( Length of cut): 2.3mm
L3 (Length of undercut): 12mm
L1 (Total length): 45mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
Helical pitch: 30



  • Optimized face geometry for excellent surfaces
  • Defined microbevel for support and stabilization
  • Polished chip space for ideal chip evacuation
  • Tolerance D1: -0.001/-0.006 mm
  • Tolerance D3: 0/-0.02 mm
 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: d04

Coating: AlphaSlide Rainbow

Strategy: High Speed cutting

Applications: Trimming, Full Slot, X, Y, Z , Helical

Features:  Center Cutting, Sharp-Edged

item code: 122035
