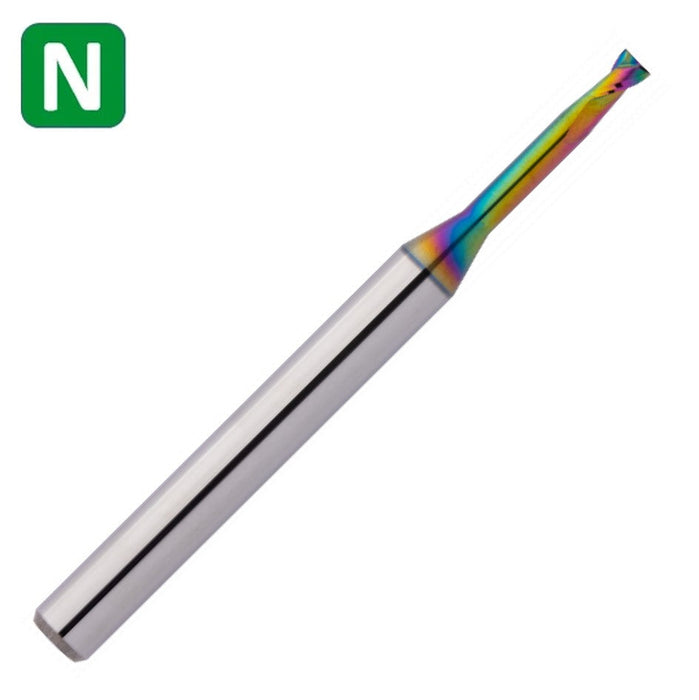

Solid Carbide End Mill 0.5mm 0.5x0.7-6x45xD4
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 0.5mm
D3 (Undercut diameter): 0.48mm
L2 ( Length of cut): 0.7mm
L3 (Length of undercut): 6mm
L1 (Total length): 45mm
D2 (Shank diameter): 4mm
Z (Number of cutting edges): 2
Helical pitch: 30
- Optimized face geometry for excellent surfaces
- Defined microbevel for support and stabilization
- Polished chip space for ideal chip evacuation
- Tolerance D1: -0.001/-0.006 mm
- Tolerance D3: 0/-0.02 mm
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: d04
Coating: AlphaSlide Rainbow
Strategy: High Speed cutting
Applications: Trimming, Full Slot, X, Y, Z , Helical
Features: Center Cutting, Sharp-Edged
item code: 122010
