Solid Carbide End Mill 20mm 20C0.3x41-54x104xD20

Original price $158.65 - Original price $158.65
Original price
$158.65
$158.65 - $158.65
Current price $158.65

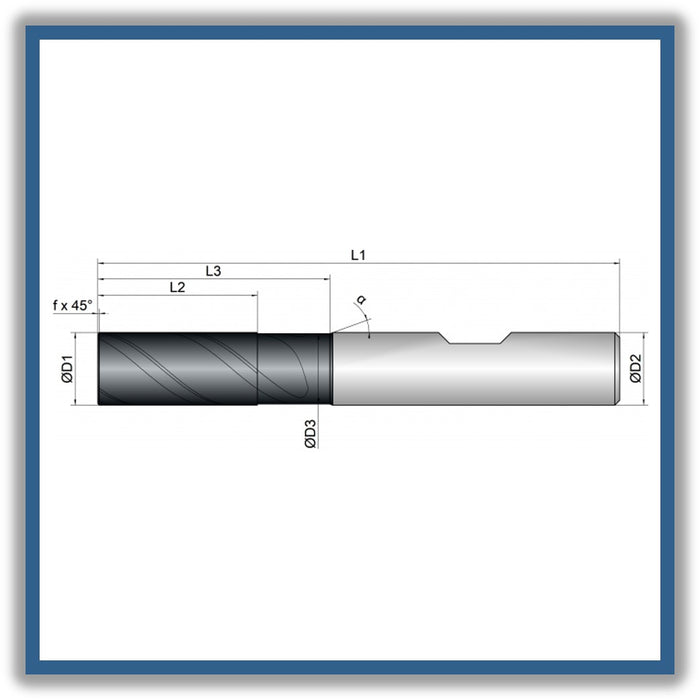

D1 (Cutting diameter): 20mm
D3 (Undercut diameter): 19.5mm
L2 (Length of cut): 41mm
L3 (Length of undercut): 54mm
L1 (Total length): 104mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 3
45DEG Corner chamfer: 0.3mm
Helical Pitch: 45

  • Adapted clearance angle for reliable machining
  • Unequal tooth pitch for smooth running
  • Large chip chambers for good chip evacuation

 * MADE IN GERMANY *



Cooling: Air-cooled, dry, water min, water max

Tolerance: e8

Coating: BetaUni Iron

Strategy: Extended Trochoidal Cutting, High performance cutting, Universal machining

Applications: Trimming, Full slot, X, Y, Helical

Features: Unequal tooth pitch, Center cutting, 2XD, Corner bevel

item code: 337010
