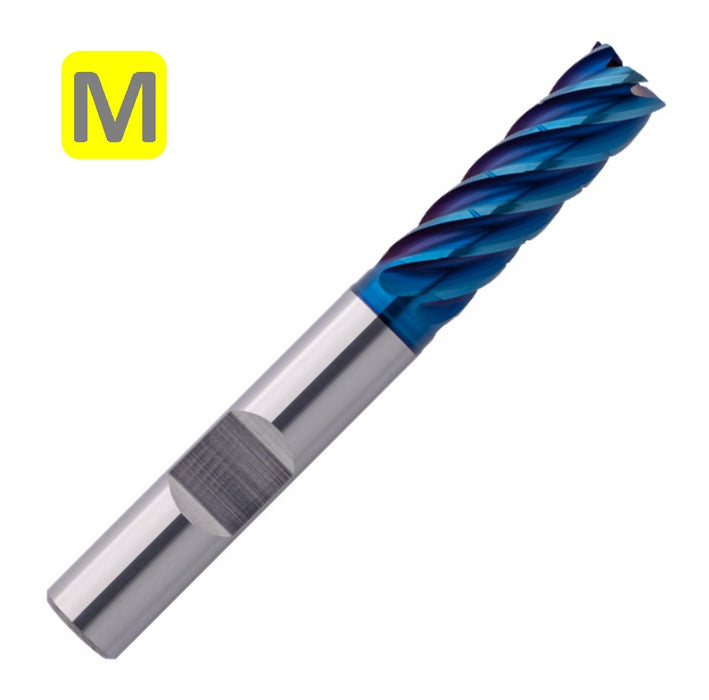

Solid Carbide End Mill 16mm 16R0.3x51-55x110xD16

Solid Carbide End Mill 16mm 16R0.3x51-55x110xD16

$241.35 - $241.35
$241.35
$241.35 - $241.35
$241.35


D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15.8mm
L2 (Length of cut): 51mm
L3 (Length of undercut): 55mm
L1 (Total length): 110mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 6
R Corner radius: 0.3mm
Helical Pitch: 40

  • 6 cutting edges for best performance and an excellent material removal rate
  • Optimized cutting edges and chip chambers to effectively prevent built-up edges and chip stuck
  • Ideal chip evacuation, even with high feed rates and big radial depth of cutting
  • For roughing and finishing under ETC conditions
  • For process reliable, helical immersion

 * MADE IN GERMANY *



Cooling: Water max

Tolerance: e8

Coating: AlphaNox Navy X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X, Y, Helical

Features: Unequal tooth pitch, Chip breaking, 3XD, Dynamic helical pitch, Non-center cutting, Corner radius

item code: 333005
