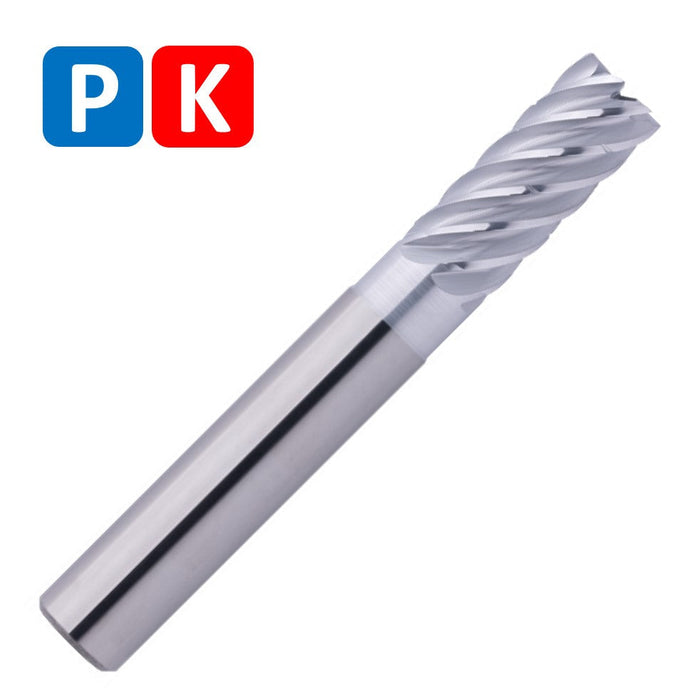

Solid Carbide End Mill 20mm 20R2x41-52x104xD20

Solid Carbide End Mill 20mm 20R2x41-52x104xD20

$276.40 - $276.40
$276.40
$276.40 - $276.40
$276.40


D1 (Cutting diameter): 20mm
D3 (Undercut diameter):19.8mm
L2 ( Length of cut): 41mm
L3 (Length of undercut): 52mm
L1 (Total length): 104mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 7
R Corner radius: 2mm
Helical pitch: 40



  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions
 * MADE IN GERMANY *






Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy: Extended Trochoidal Cutting

Applications: Trimming, X

Features:  Unequal Tooth Pitch, Chip Breaking, 2xD, Dynamic Helical Pitch, Non-Center Cutting,  Corner Radius

item code: 136024
