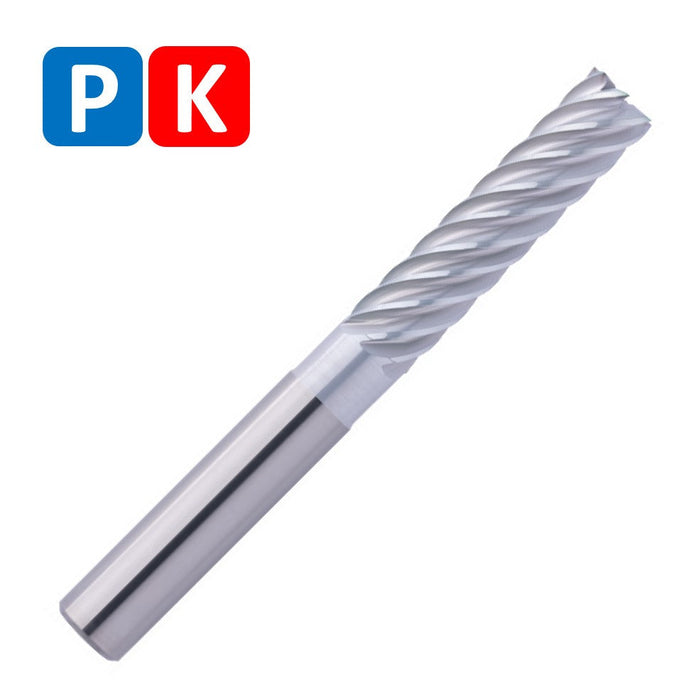

Solid Carbide End Mill 16mm 16x64-72x125xD16
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 16mm
D3 (Undercut diameter): 15.5mm
L2 ( Length of cut): 64mm
L3 (Length of undercut): 72mm
L1 (Total length): 125mm
D2 (Shank diameter): 16mm
Z (Number of cutting edges): 7
Helical pitch: 39
- 7 finely finished and homogenized cutting edges
- Special groove profile for the removal of long chips
- Variable helical pitch and unequal tooth pitch for maximum smoothness
- 7 cutting edges for highest feed rates
- For excellent surfaces and maximum dimensional accuracy
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: e8
Coating: AlphaFerro Platin X
Strategy: High Performance cutting
Applications: Trimming, X
Features: Unequal Tooth Pitch, 4xD, Dynamic Helical Pitch, Non-Center Cutting, Sharp-Edged
item code: 120005
