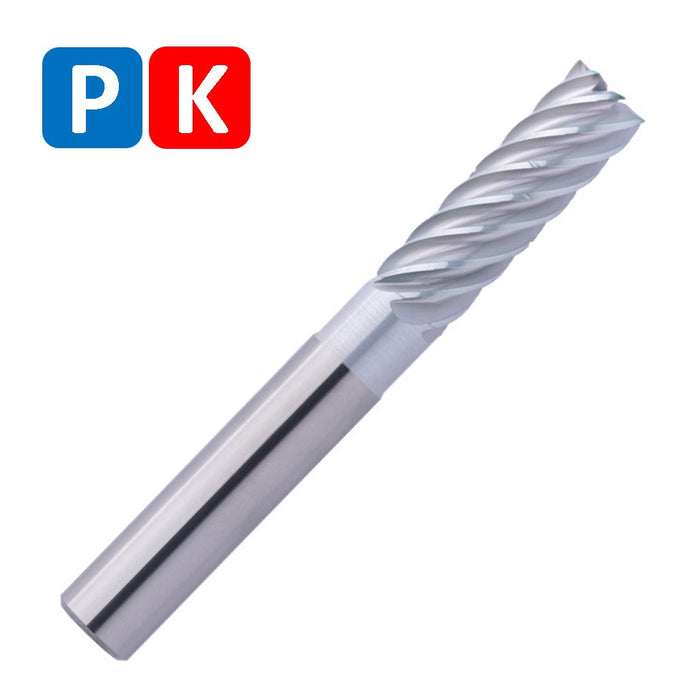

Solid Carbide End Mill 12mm 12R0.2x36-45x93xD12

Solid Carbide End Mill 12mm 12R0.2x36-45x93xD12

$132.43 - $132.43
$132.43
$132.43 - $132.43
$132.43


D1 (Cutting diameter): 12mm
D3 (Undercut diameter): 11.8 mm
L2 ( Length of cut): 36mm
L3 (Length of undercut): 45mm
L1 (Total length): 93mm
D2 (Shank diameter): 12mm
Z (Number of cutting edges): 7


  • Variable helical pitch with unequal tooth pitch for smooth running and a soft cut
  • Adapted chip chambers for trochoidal milling
  • Optimized design of the chip breakers for maximum tool life
  • 7 cutting edges for best performance with a unique tool life
  • Ideal chip evacuation at the highest feed rates
  • For roughing and finishing under ETC conditions

 * MADE IN GERMANY *



Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Applications: X

Features:  Extended Trochoidal Cutting, Unequal Tooth Pitch, Trimming, Chip Breaking, 3XD, Dynamic Helical Pitch, Non-Center Cutting, Corner Radius

item code: 172004
