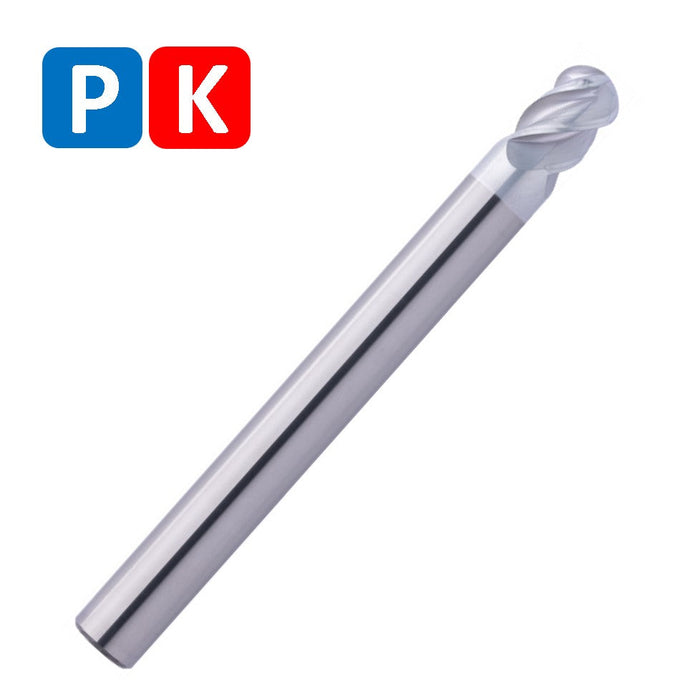

Solid Carbide End Mill 10mm 10R5x14x100xD10
Original price
-
Original price
Original price
-
Current price
D1 (Cutting diameter): 10mm
L2 ( Length of cut): 14mm
L1 (Total length): 100mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 4
R Corner radius: 5
Helical pitch: 40
- Highest surface quality through 4 cutting edges to the center
- Defined tool flank for support and vibration reduction
- Special face geometry for optimal chip evacuation
- 4 cutting edges for the highest feed speeds
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
- For use in HSC milling
- For roughing and finishing
- Long version for deeper cavities
* MADE IN GERMANY *
Cooling: air-cooled, dry, water min, water max
Tolerance: f8
Coating: AlphaFerro Platin X
Applications: X, Y, Z
Features: High Speed Cutting, Engraving, Multipass Milling, Center Cutting, 1XD, Corner Radius
item code:178006
