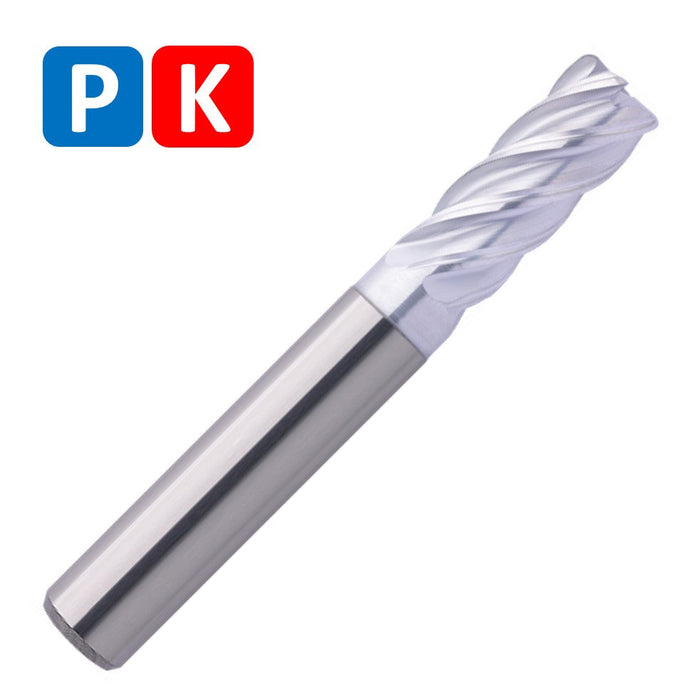

Solid Carbide End Mill 10mm 10R1x22-30x72xD10

Solid Carbide End Mill 10mm 10R1x22-30x72xD10

$86.76 - $86.76
$86.76
$86.76 - $86.76
$86.76
D1 (Cutting diameter):10mm
D3 (Undercut diameter): 9.8mm
L2 ( Length of cut): 22mm
L3 (Length of undercut): 30mm
L1 (Total length): 72mm
D2 (Shank diameter): 10mm
Z (Number of cutting edges): 5
R Corner radius: 1mm
Helical pitch: 40



  • Five cutting edges for an optimized metal removal rate and extended tool life
  • Defined geometry of the cutting edges for stabilization with high cutting depths
  • Radius tolerance r ≤ 1.5 mm: ± 0.003 mm
  • Radius tolerance r > 1.5 mm: ± 0.005 mm
  • For multipass milling of 3D contours
 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: e8

Coating: AlphaFerro Platin X

Strategy:  Extended Trochoidal Cutting, High Speed Cutting, High Performance Cutting

Applications:  Multipass Milling, Trimming, X, Y, Helical

Features: Unequal Tooth Pitch, 2xD, Dynamic Helical Pitch, Center Cutting, Corner Radius

item code: 112008
