Solid Carbide Corner Rounding 8.4R1.8x6100xD6

Solid Carbide Corner Rounding 8.4R1.8x6100xD6

$131.35 - $131.35
$131.35
$131.35 - $131.35
$131.35

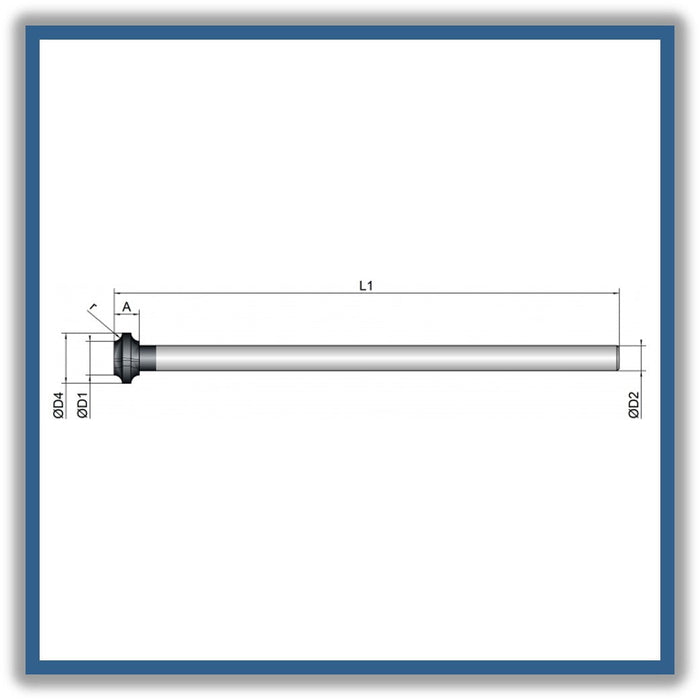

D1 (Cutting diameter): 8.4mm
D4 (Conical Back): 12mm
A (Total Chamfer Length): 6mm
L1 (Total length): 100mm
D2 (Shank diameter): 6mm
Z (Number of cutting edges): 4
R Corner radius: 1.8mm



  • For the universal manufacturing of radii to components
  • Forwards and backwards cutting
  • Variant made of blank form for deep cavities



 * MADE IN GERMANY *


Cooling: air-cooled, dry, water min, water max

Tolerance: v1

Coating: BetaUni Iron

Strategy: Universal Machining

Applications: Corner Rounding

item code: 162001
