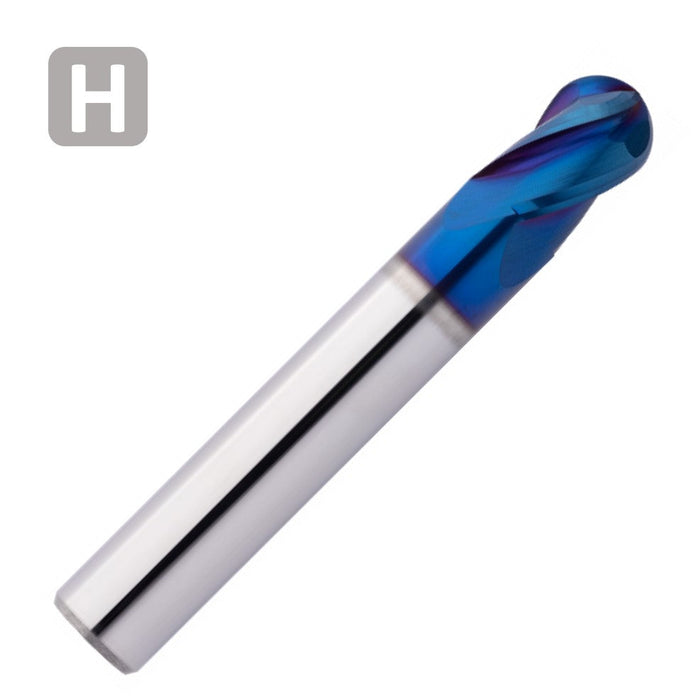

Solid Carbide End Mill 20mm 20R10x26x93xD20
Original price
-
Original price
Original price
-
Current price

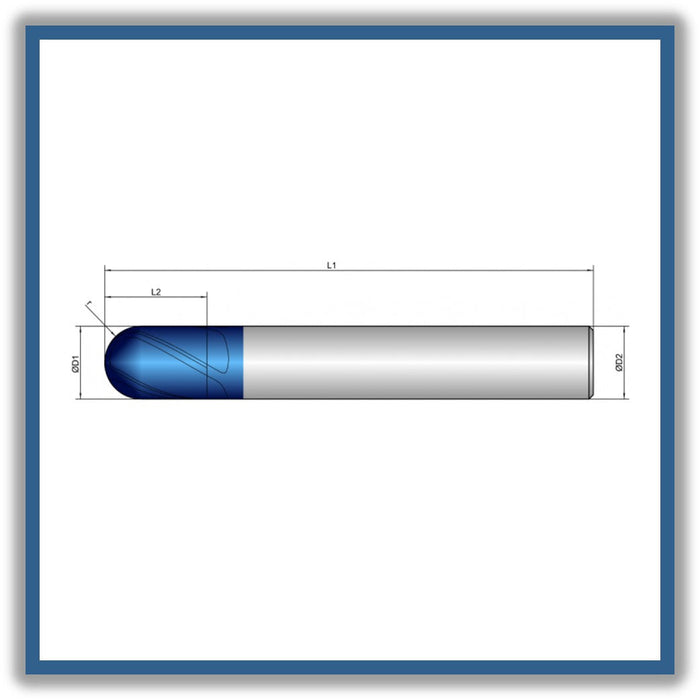

D1 (Cutting diameter): 20mm
L2 ( Length of cut): 26mm
L1 (Total length): 93mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 4
R Corner radius: 10
Helical pitch: 30
- Ultrafine carbide grade specially developed for machining hardened steels
- Adapted rake angle for safe milling up to 70 HRC
- Defined cutting edge preparation for homogeneous wear
- 4 cutting edges to the center
- Radius tolerance r ≤ 2 mm: ± 0.003 mm
- Radius tolerance r > 2 mm: ± 0.005 mm
* MADE IN GERMANY *
Cooling: air-cooled, dry
Tolerance: f8
Coating: AlphaDura Navy
Strategy: High Speed Cutting
Applications: Engraving, Multipass Milling, X, Y, Z
Features: Center Cutting, 1XD, Corner Radius
item code: 221016
