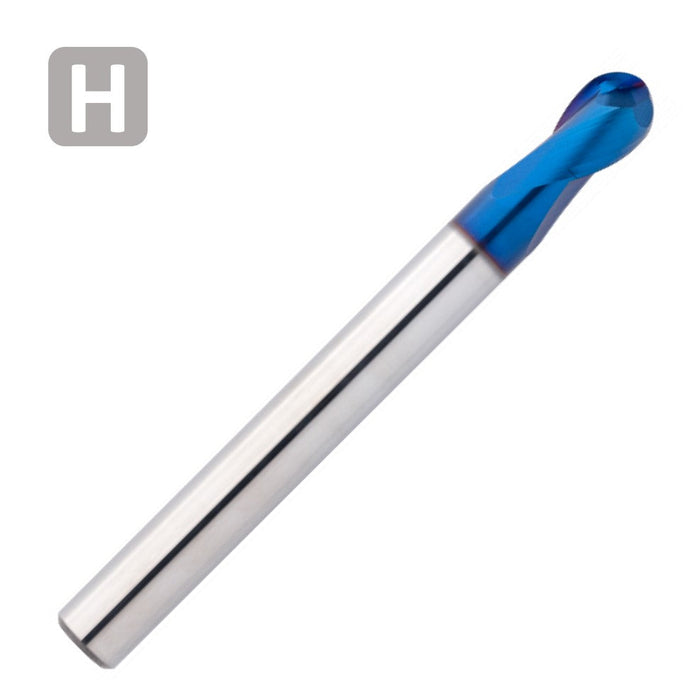

Solid Carbide End Mill 20mm 20R10x26x150xD20

Solid Carbide End Mill 20mm 20R10x26x150xD20

$307.57 - $307.57
$307.57
$307.57 - $307.57
$307.57

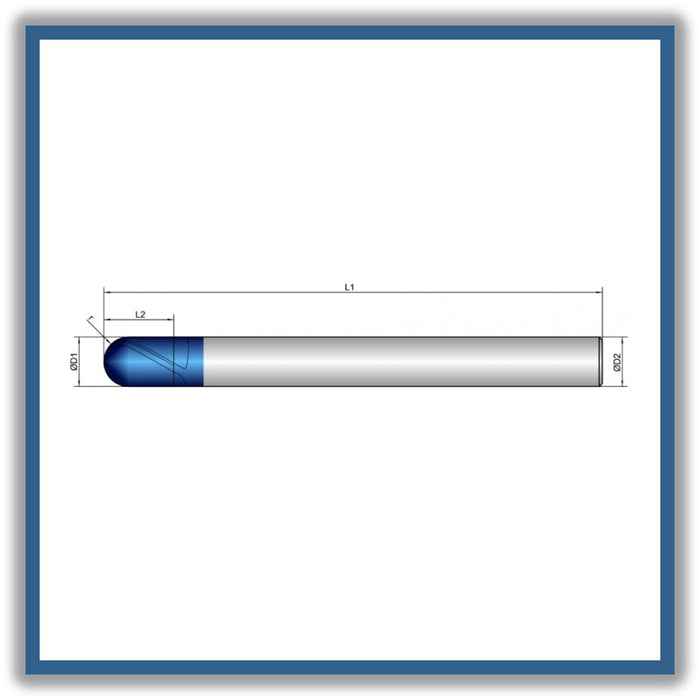

D1 (Cutting diameter): 20mm
L2 ( Length of cut): 26mm
L1 (Total length): 150mm
D2 (Shank diameter): 20mm
Z (Number of cutting edges): 2
R Corner radius: 10
Helical pitch: 30

  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Radius tolerance r ≤ 2 mm: ± 0.003 mm
  • Radius tolerance r > 2 mm: ± 0.005 mm
  • Long version for deeper cavities
 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: f8

Coating: AlphaDura Navy

Strategy: High Speed Cutting

Applications: Engraving, Multipass Milling, X, Y, Z

Features: Center Cutting, 1XD, Corner Radius

item code: 219017
