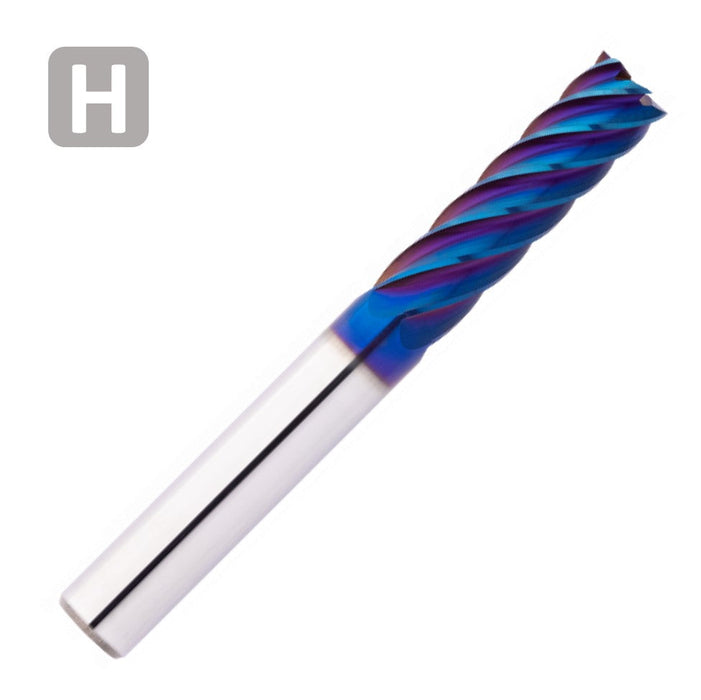

Solid Carbide End Mill 14mm 14x45x100xD14

Solid Carbide End Mill 14mm 14x45x100xD14

$187.03 - $187.03
$187.03
$187.03 - $187.03
$187.03

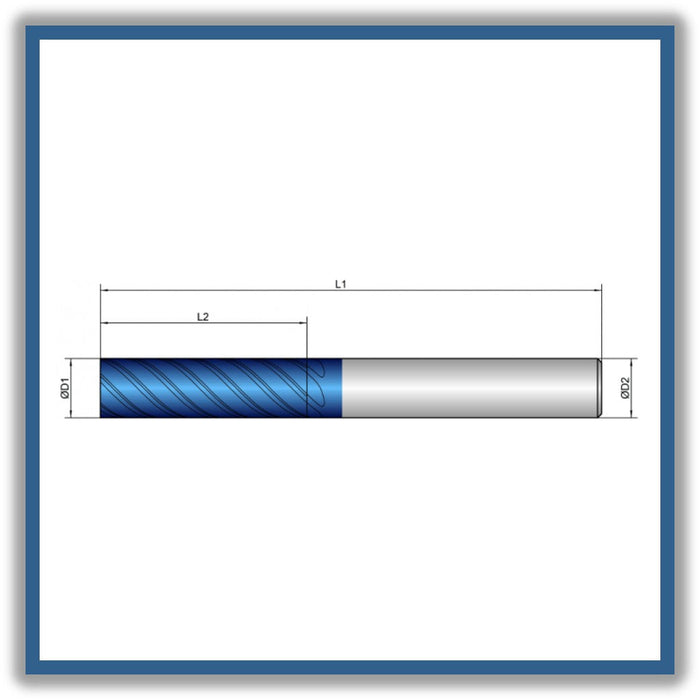

D1 (Cutting diameter): 14mm
L2 ( Length of cut): 45mm
L1 (Total length): 100mm
D2 (Shank diameter): 14mm
Z (Number of cutting edges): 6
Helical pitch: 45




  • Ultrafine carbide grade specially developed for machining hardened steels
  • Adapted rake angle for safe milling up to 70 HRC
  • Defined cutting edge preparation for homogeneous wear
  • Reduce the axial depth of cutting with increasing hardness
  • For roughing and finishing

 * MADE IN GERMANY *



Cooling: air-cooled, dry

Tolerance: e8

Coating: AlphaDura Navy

Strategy: Extended Trochoidal Cutting, High Performance Cutting

Applications: Trimming, X, Helical

Features:  Dynamic Helial Pitch, Center Cutting, Sharp-Edged

item code: 143008
